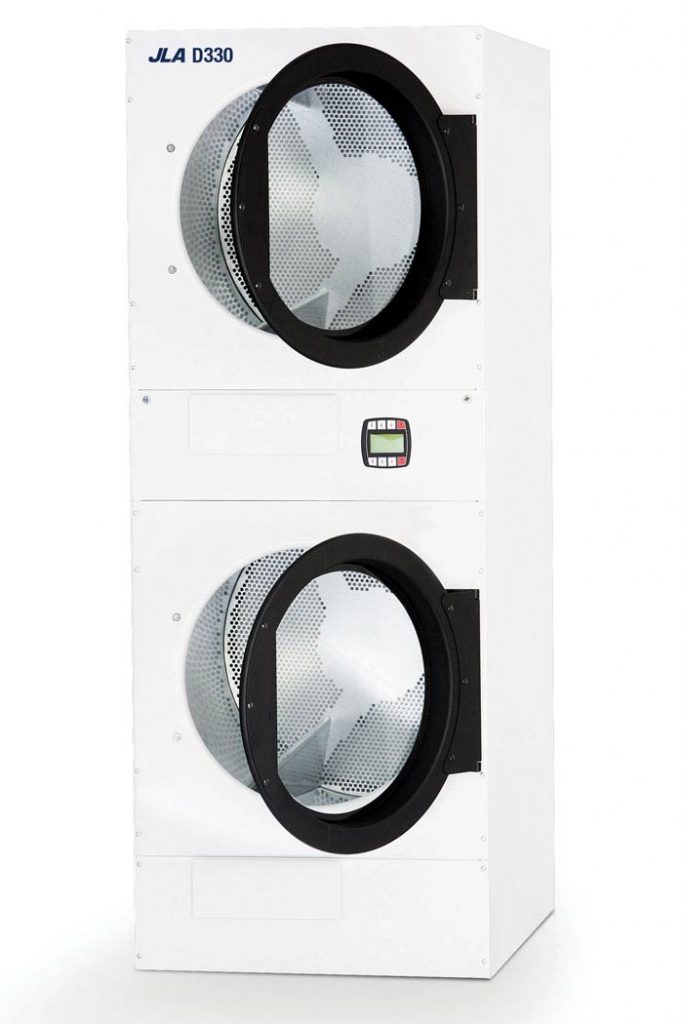

JLA D330 Coin-Op Stack
The JLA D330 coin-op stacked dryer increases the efficiency and drying capacity of your managed or self-serve laundry without taking up too much space. Capable of handling bulky items like duvets with ease and programmed with auto-dry cycles for energy efficiency, your customers will wonder how they ever did laundry without it.
The D330 model, available in both gas and electric models, also features our innovative S.A.F.E. dryer fire extinguishing system, which uses water vapour to put out fires before they escape from the dryer drum.
|Control: Microprocessor||Capacity (Kg/lb): 2×13.5/30|
|Dimensions HxWxD (mm): 1988x758x1118mm||Door Opening (mm Ø): 546|
|Freestanding: Yes||Connection Size (“BSP Supply/Ret): 1 / 3/4|
|Electrics – Elec Model (Volt/ph/Amp): 400/3/50||Electrics – Gas Model (Volt/ph/Amp): 230/1/20|
|Electrics – Steam Model (Volt/ph/Amp): 230/1/13||Exhaust (mm Ø): 2×150|
|Gas Rating kW (Btu/hr): 2×20 (68,000) Total (136,000)||Steam Rating kg/hr (lb/hr): 45/100|
|Connection Size (“BSP): “2×1/2 connection via 3/4 flexible amoured hose”||Heating: Gas|
|Ventilation/Make-Up Air (m2/in2): 0.087 (136)||Compressed Air Rating m3 (ft3/hr): 9.5 (333)|
|Drum Volume (per basket) (m3): 0.286||Net Weight (gas/electric) (Kg): 360|
|Power (Electric) (per pocket) (kW): 15||Net Weight Steam (Kg): 380|
