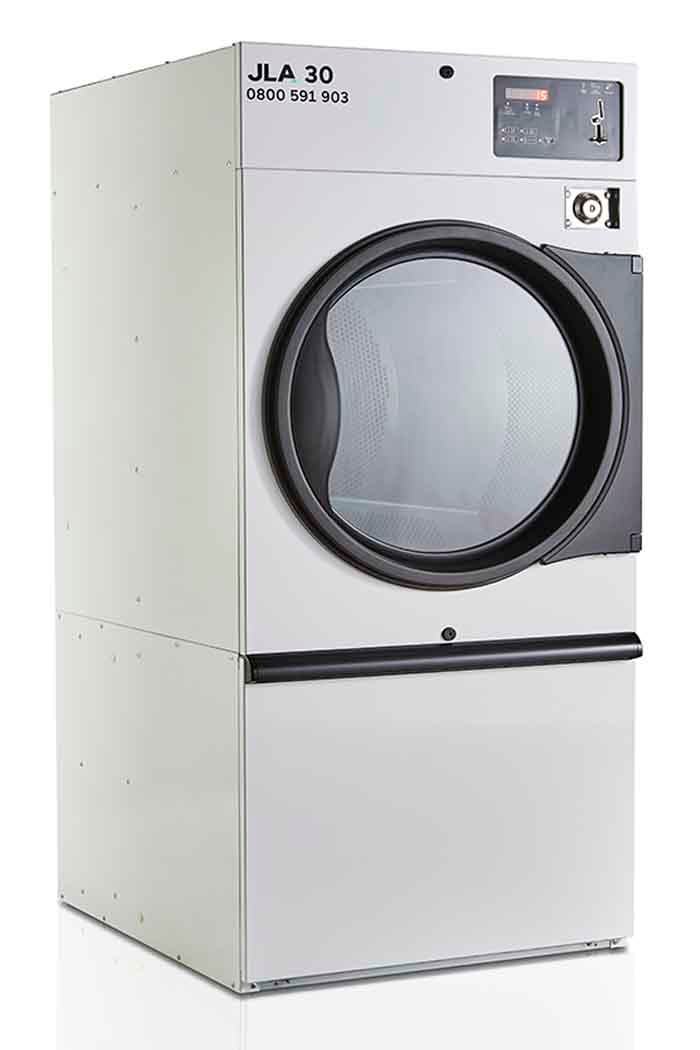

Coin-Operated JLA Standard Tumble Dryers
Thanks to concentrated airflow and sealed cylinder rims, you can maintain a high throughput without using lots of energy.
Designed with fewer moving parts for less wear and tear, a large and easy-to-clean lint compartment and a heavy-duty door hinge, our dryers perform cycle after cycle.
Maximum efficiency
Concentrated airflow and sealed cylinder rims help maintain a high throughput for fast drying times without using lots of energy.

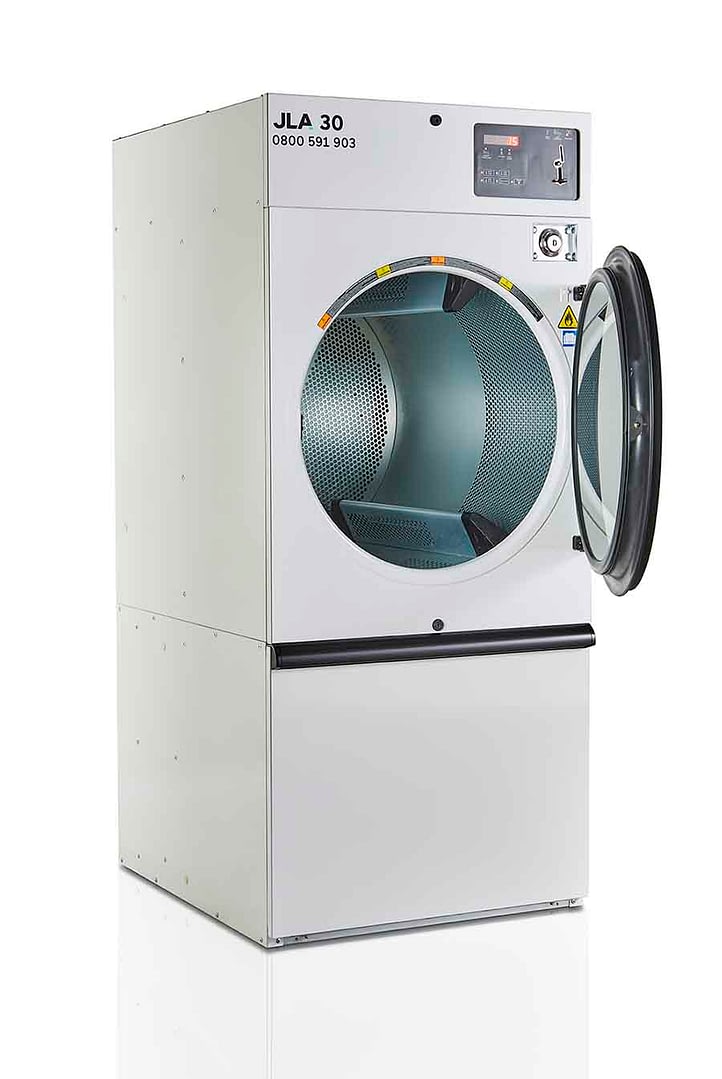

68cm door opening
7” full colour touch screen
Which features a swipe function and built-in operating instructions for ease of use.
Built to last
Features you'll love
Reversing drum
Automated maintenance service reminders
Optional SAFE
Saving energy with JLA Standard Dryers
Explore the features of this product and how you can save energy bills
This guide highlights the innovative key features on the JLA Standard Dryer coin-op range and how it can help you improve efficiencies in even the busiest of laundry rooms. Available in three options, this product range is easy-to-clean, a wider door opening and a reversing drum to prevent linens from tangling to perform cycle after cycle.
Save time and money
Our coin-operated JLA Standard commercial tumble dryers will save you both time and money.
Touch screen control
Thanks to EVOLVIS control, your customers can enjoy use of a 7” full colour touch screen display with swipe functionality.
Also available with...

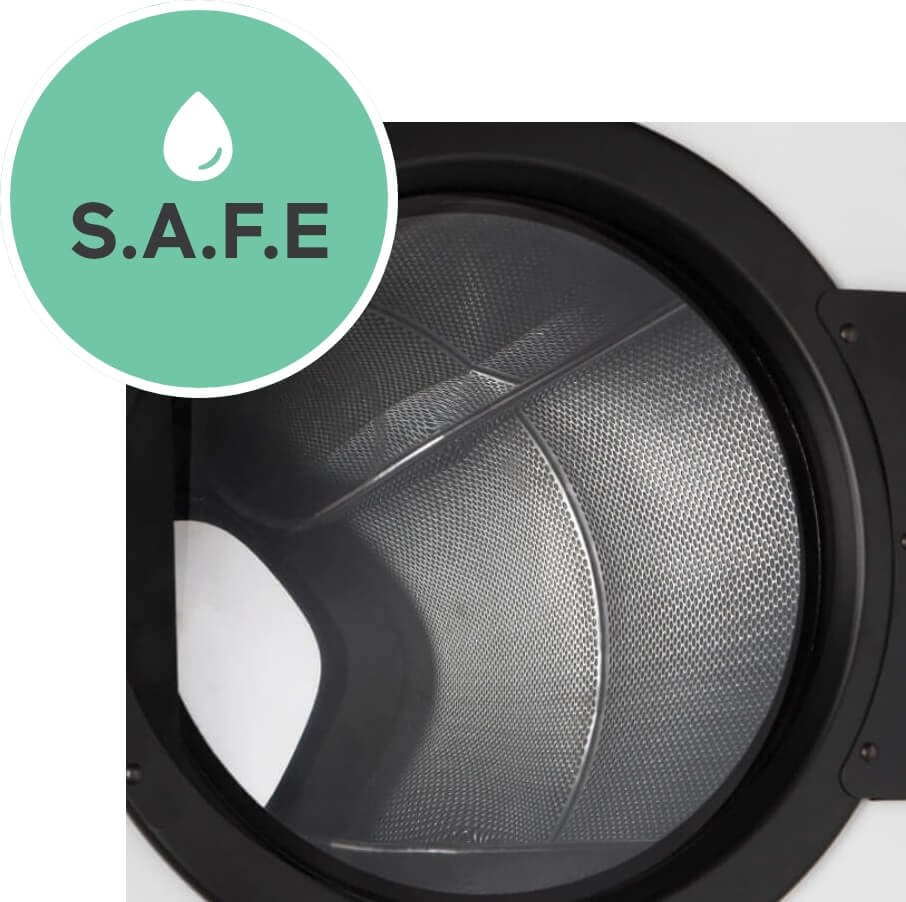

SAFE technology
All of our gas JLA Standard tumble dryers are available with SAFE (sensor activated fire extinguishing) technology.
Stackable washer-dryer combinations
Alongside new features and technical improvements, our stackable coin-operated JLA Standard tumble dryers allow you to double up on efficiency.
The machine sits perfectly on top of our coin-operated JLA Standard washing machine. However, if you need extra drying capacity, you can also put two dryers together in an upright combination.
FAQs
Which options are available in the range of JLA Standard tumble dryers?
Our range of JLA Standard tumble dryers includes four options: the JLA 30 Touch, the JLA 50 Touch, the JLA 30 Stacked and the JLA 45 Stacked.
How big are the JLA Standard tumble dryers?
Our JLA Standard tumble dryers come in a range of sizes. While the JLA 30 has a capacity of 14kg and a drum capacity of 530 litres, the JLA 50 has a capacity of 26kg and a drum volume of 530 litres.
Specification
| CAPACITY 20:1 (kg) | 14 |
| DRUM | |
| Volume (l) | 270 |
| Diameter (mm) | 673 |
| Depth (mm) | 762 |
| Door opening diameter (mm) | 576 |
| Temperature min. (°C) | 38 |
| Temperature max (°C) | 88 |
| ELECTRICAL | |
| Gas and steam version | 240V/50Hz/1ph – 13A |
| Electric heat version | 415V/50Hz/3ph – 32A |
| GAS REQUIREMENTS | |
| Heat input | 21.4kW (73000 BTU) |
| Inlet size | 1/2 ” BSP |
| STEAM REQUIREMENTS | |
| Consumption | 39.5kg/hr |
| Connection – supply & return | 3/4 ” BSP |
| POWER MOTOR | |
| Drum | 0,20 |
| Fan | 0,40 |
| Exhaust flow rate (50 Hz) (L/S) | 240 |
| Diameter (mm) | 150 |
| POWER | |
| Electric heating (kW) | 21 |
| Gas heating (BTU/H) | 73 000 |
| Gas heating (KCAL) | 18 408 |
| Energy consumption (kWh) – Electric | 9,4 |
| Energy consumption (kWh) – Gas | 0,220 |
| Energy consumption (kWh) – Steam | N/A |
| STEAM HEATING | |
| @ 6,9 BAR | N/A |
| Steam inlet connection (inch) | N/A |
| Steam outlet connection (inch) | N/A |
| Gas connection (inch) | N/A |
| NOISE LEVEL | 59 |
| TRANSPORT DATA | |
| Net weight (kg) | 145 (G/S) – 150 (E) |
| Gross weight (kg) | 214 (G/S) – 220 (E) |
| Packing dimensions W x D x H (mm) | 880 x 1320 x 2210 |
| CAPACITY 20:1 (kg) | 26 |
| DRUM | |
| Volume (l) | 530 |
| Diameter (mm) | 940 |
| Depth (mm) | 762 |
| Door opening diameter (mm) | 683 |
| Temperature min. (°C) | 38 |
| Temperature max (°C) | 88 |
| ELECTRICAL | |
| Gas and steam version | 240V/50Hz/1ph – 16A |
| Electric heat version | 415V/50Hz/3ph – 45A |
| GAS REQUIREMENTS | |
| Heat input | 32.8kW (112000 BTU) |
| Inlet size | 1/2 ” BSP |
| STEAM REQUIREMENTS | |
| Consumption | N/A |
| Connection – supply & return | N/A |
| POWER MOTOR | |
| Drum | 0,40 |
| Fan | 0,40 |
| Exhaust flow rate (50 Hz) (L/S) | 330 |
| Diameter (mm) | 203 |
| POWER | |
| Electric heating (kW) | 30 |
| Gas heating (BTU/H) | 130 000 |
| Gas heating (KCAL) | 32 781 |
| Energy consumption (kWh) – Electric | 15,2 |
| Energy consumption (kWh) – Gas | 0,210 |
| Energy consumption (kWh) – Steam | – |
| STEAM HEATING | |
| @ 6,9 BAR | 113 600 BTU/h 33,29 kW |
| Steam inlet connection (inch) | 3/4 |
| Steam outlet connection (inch) | 3/4 |
| Gas connection (inch) | 1/2 |
| NOISE LEVEL | 60 |
| TRANSPORT DATA | |
| Net weight (kg) | 295 (G) – 315 (S) – 310 (E) |
| Gross weight (kg) | 380 (G) – 400 (S) – 395 (E) |
| Packing dimensions W x D x H (mm) | 1170 x 1350 x 2240 |
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to myJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
Other products you may like...

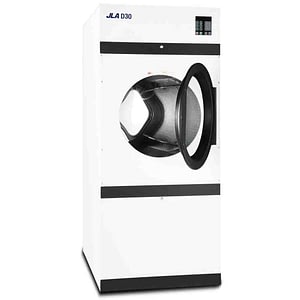

Coin-Operated JLA D-Dryers
Our coin-operated JLA D-dryers are extremely cost-effective and combine efficiency with safety.

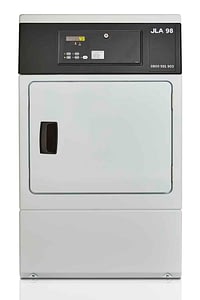

Coin-Operated JLA 98 Tumble Dryer
