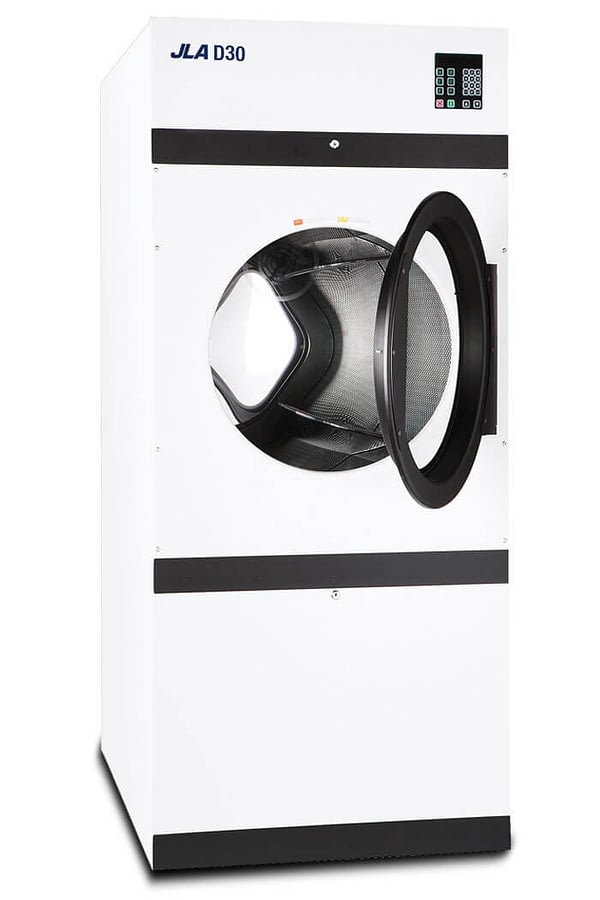

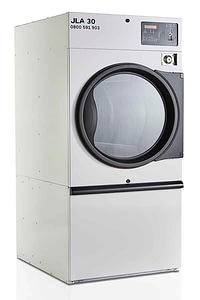

Coin-Operated JLA D-Dryers
Key features include the JLA coin mechanism, which takes any coin of any currency, as well as tokens. These machines are ideal for both duvets and contract work.
Specification
| Capacity (kg/lb) | 14/30 |
| Height Gas/Steam (mm) | 1835 |
| Height Electric (mm) | 1910 |
| Width (mm) | 870 |
| Depth inc. door (mm) | 765 |
| Net Weight Gas/Electric (kg) | 185 |
| Net Weight Steam (kg) | 197 |
| Drum Volume (m3/ltr) | 0.26/262 |
| Door Opening (mm Ø) | 546 |
| Control (Microprocessor) | Phase 7 |
| Heating (Gas/Steam/Elec) | |
| Electrics – Gas Model (Volt/ph/Amp) | 230/1/13 |
| Electrics – Elec Model (Volt/ph/Amp) | 400/3/32 |
| Electrics – Steam Model (Volt/ph/Amp) | 230/1/13 |
| Power (Electric) (kW) | 18 |
| Gas Rating kW (Btu/hr) | 23 (78,000) |
| Connection Size (“BSP) | 1/2 |
| Steam Rating Kg/hr (lb/hr) | 45 (100) |
| Connection Size (“BSP Supply/Ret) | 1/1 |
| Airflow m3 (ft3/min) | 10.93 (386) |
| Exhaust (mm Ø) | 203 |
| Ventilation/Make-Up Air (m2/in2) | 0.05/78 |
| Air Connection (“BSP) | 1/8 |
| Air Connection Pressure (only steam) (psi) | 80 |
| Capacity (kg/lb) | 23/50 |
| Height Gas/Steam (mm) | 1835 |
| Height Electric (mm) | 1910 |
| Width (mm) | 870 |
| Depth inc. door (mm) | 1270 |
| Net Weight Gas/Electric (kg) | 295 |
| Net Weight Steam (kg) | 310 |
| Drum Volume (m3/ltr) | 0.52/518 |
| Door Opening (mm Ø) | 546 |
| Control (Microprocessor) | Phase 7 |
| Heating (Gas/Steam/Elec) | |
| Electrics – Gas Model (Volt/ph/Amp) | 230/1/13 |
| Electrics – Elec Model (Volt/ph/Amp) | 400/3/50 |
| Electrics – Steam Model (Volt/ph/Amp) | 230/1/13 |
| Power (Electric) (kW) | 28 |
| Gas Rating kW (Btu/hr) | 44 (150,000) |
| Connection Size (“BSP) | 1/1 |
| Steam Rating Kg/hr (lb/hr) | 65 (142) |
| Connection Size (“BSP Supply/Ret) | 1/1 |
| Airflow m3 (ft3/min) | 17.83 (630) |
| Exhaust (mm Ø) | 203 |
| Ventilation/Make-Up Air (m2/in2) | 0.096/150 |
| Air Connection (“BSP) | 1/8 |
| Air Connection Pressure (only steam) (psi) | 80 |
All specifications subject to change without notice.

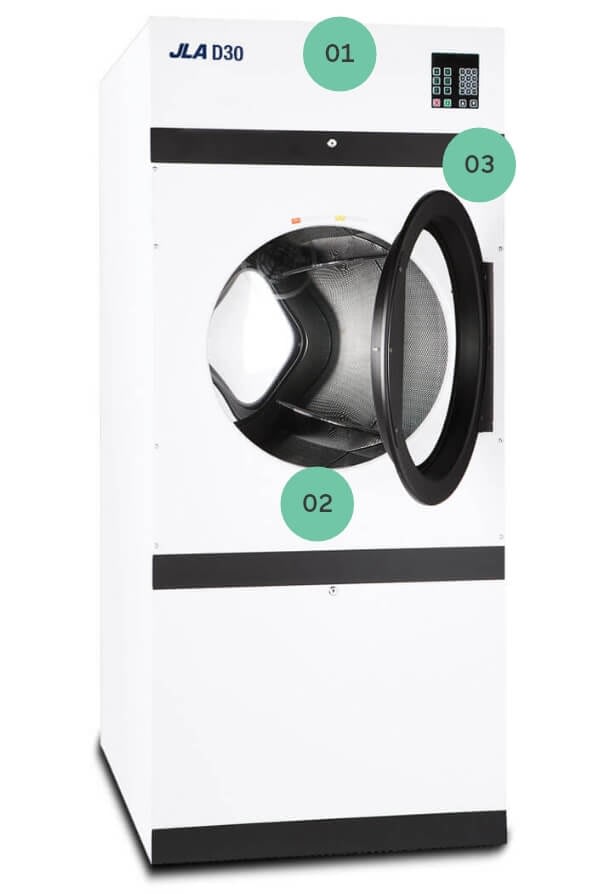

Microprocessor control
Plus, one-touch operation and six pre-programmed cycles.
Large lint filter
For efficient drying.
Self-diagnostic error codes
Features you'll love
Direct spark ignition

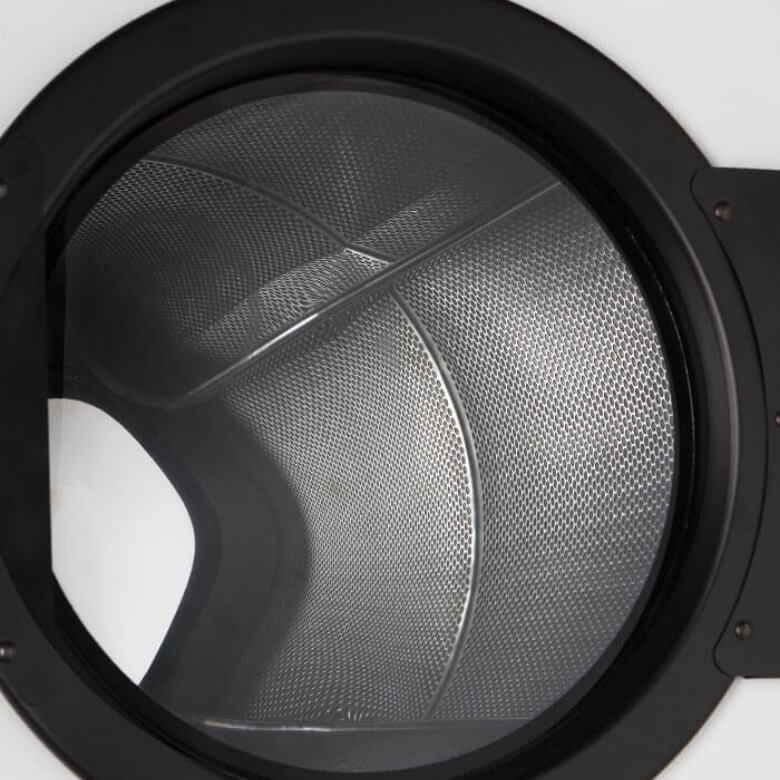

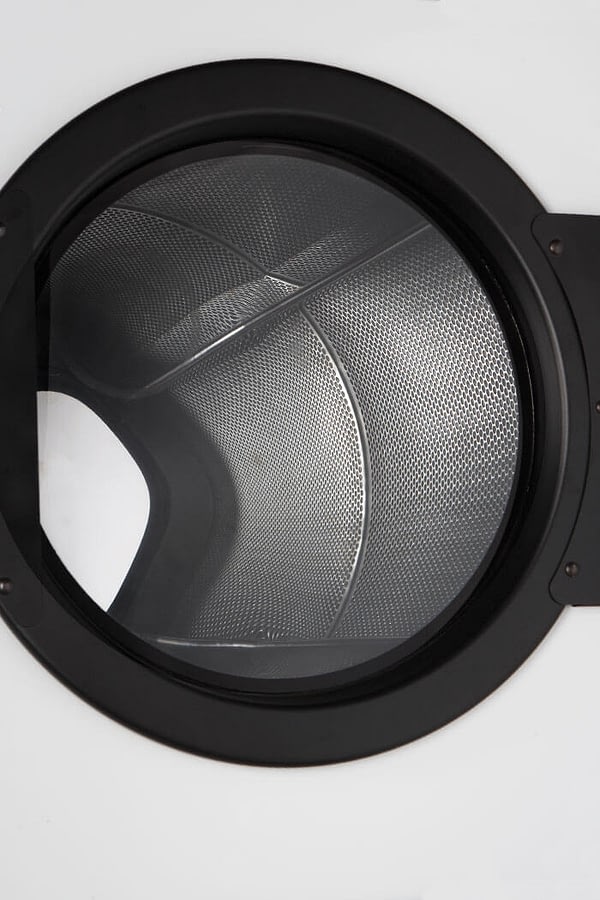

Large heavy-duty door
Stainless steel lifters and back panel

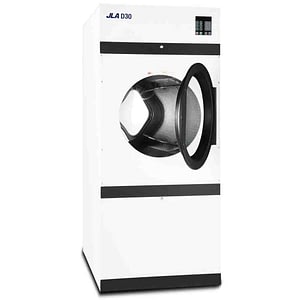

Why choose the JLA D Dryers?
Learn how the D Dryers can enhance efficiency in your laundrette or commercial laundry
This guide demonstrates all of the key features and benefits, including how safety, efficiency and use-of-easy are combined on the market-leading JLA D Dryer range. With a large heavy duty door for easy unloading and loading of items, tailored one touch pre-programmed cycles and large lint filters for efficient drying, learn why the coin-operated D Dryer is a trusted solution for laundrettes and commercial laundry rooms.
Efficiency
Our coin-operated JLA D-dryers are incredibly user friendly.
Maximise your income
Each of our coin-operated JLA D-dryers comes with a robust coin-op mechanism.
Plus, extra-large integrated coin boxes reduce the need for frequent emptying, meaning less hassle for business owners.
In addition, a full auditing of cycle counts and monies received plus a time of day pricing modifier ensure that revenue is always maximised.
FAQs
Which machines are part of the JLA D-dryer range?
This range of D-Dryers includes two excellent options, the JLA D30 and the JLA D50.
How big are the coin-operated JLA D-dryers?
Are JLA D-dryers easy to operate?
Yes, our JLA D-dryers are incredibly easy to operate. Pre-set programmes eliminate user error and self-diagnostic error codes make it easy to find faults. Plus, the large door opening makes it easy to load and unload bulky items.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to MyJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
Other products you may like...
Coin-Operated JLA Standard Tumble Dryers
Our coin-operated Standard tumble dryers deliver fast drying and help you save on your energy bills.
Coin-Operated JLA SMART Tumble Dryers
Now available with a range of innovations that are designed to cut operating costs and reduce drying times, our coin-operated SMART tumble dryers continue to set the benchmark for performance.

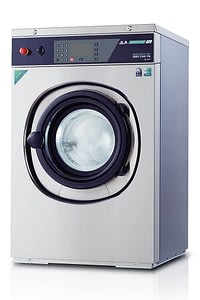

JLA Coin-Operated SMART Washing Machines (7.5kg - 18kg)
