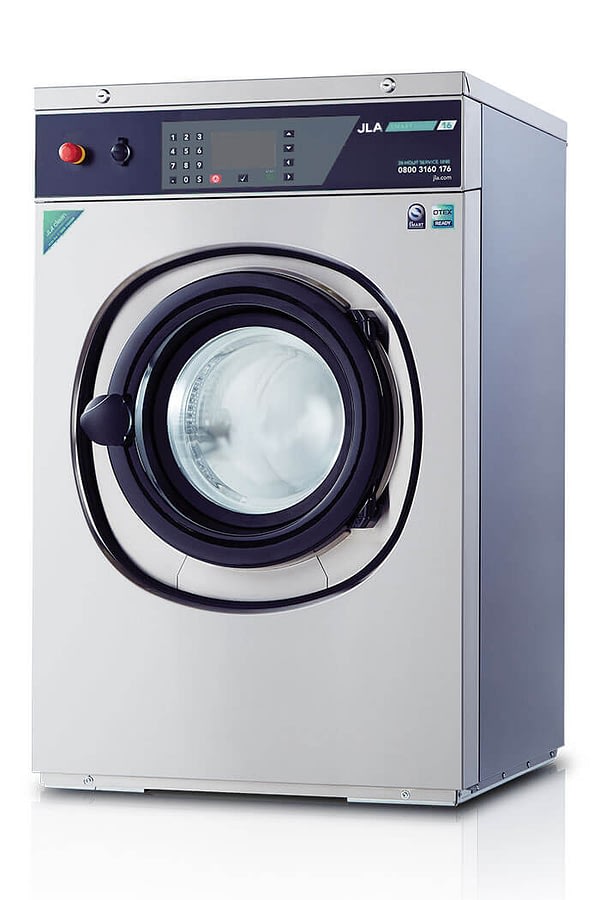

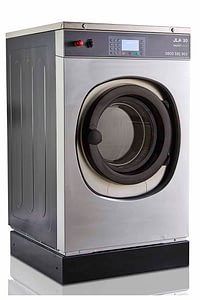

JLA Coin-Operated SMART Washing Machines (7.5kg – 18kg)
7.5kg to 18kg capacity
Stackable
Our range of coin-operated SMART washing machines bring together a unique blend of clever features and innovative designs.
Thanks to the help of countless hours of research and development, we’ve ensured our coin-operated JLA SMART commercial washing machines are faster, greener, stronger and smarter.
All of our coin-operated SMART commercial washing machines include a robust coin-operated mechanism. Extra-large integrated coin boxes reduce the need for frequent emptying and a full auditing of cycle counts and monies received plus a time of day pricing modifier ensure that revenue is always maximised.
Environmentally friendly and cost saving
Thanks to JLA Sense absorption technology, you can experience utility savings of up to 32%.

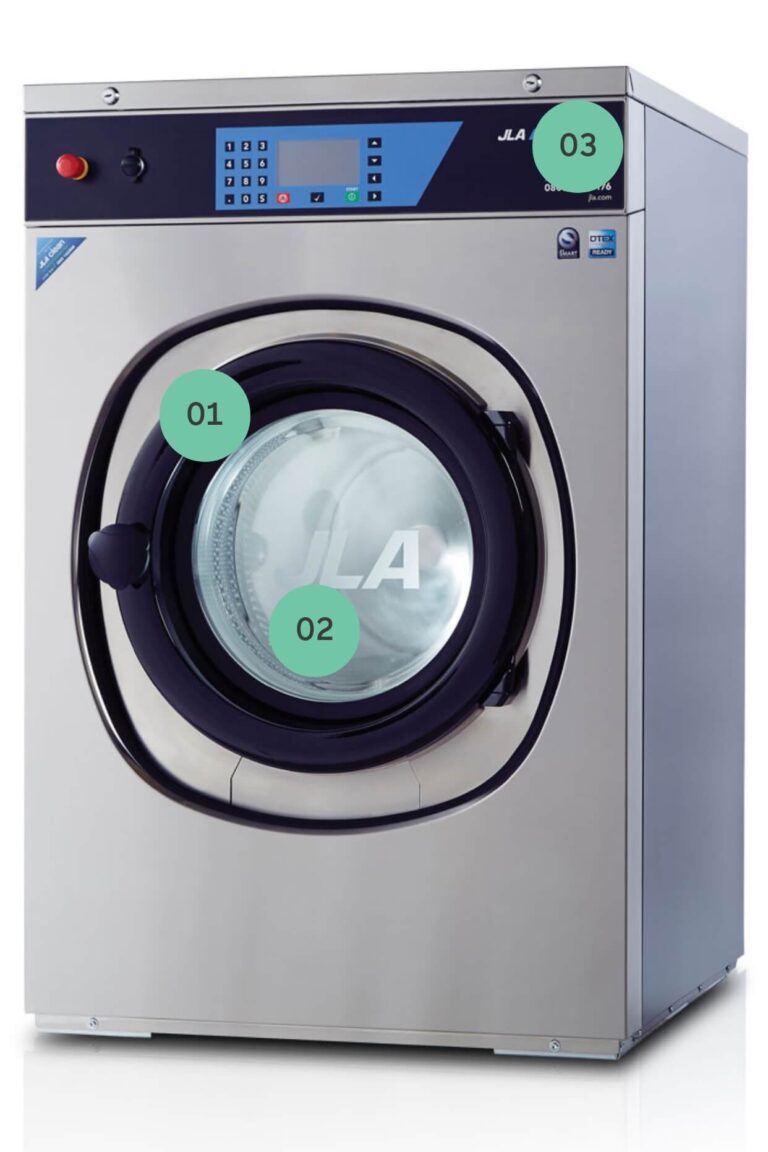

01
Low-and-large door opening
For the easy loading and unloading of bulky items.
02

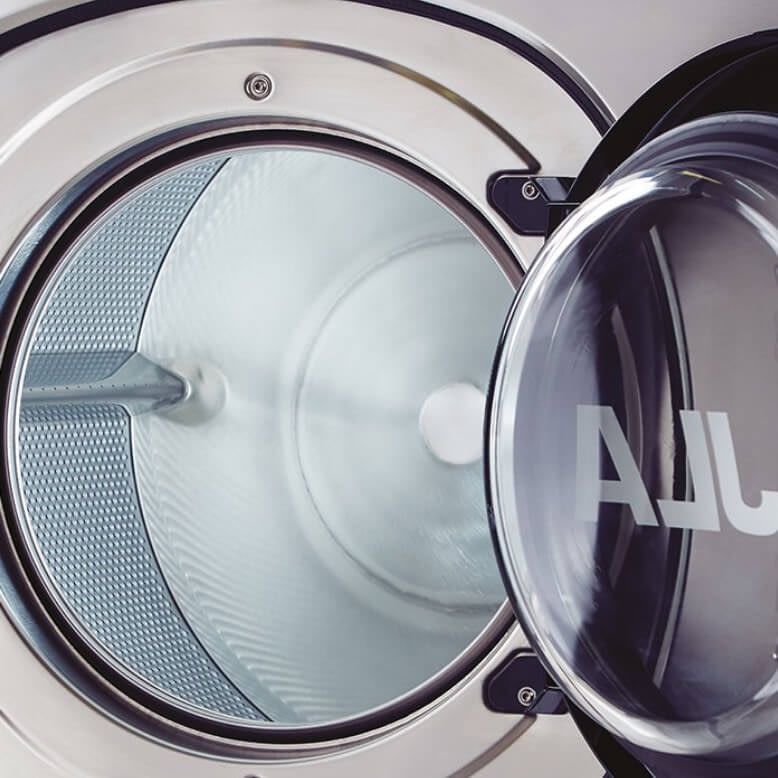

‘Waterfall’ drum perforation
For optimal drainage and the gentle washing of delicates.
03
Easy-to-use coin mechanism
Safe and secure payment for all retail requirements.
Features you'll love
Two-touch start
Your customers simply select their chosen programme and press start to begin.
Clear wash cycle display
Which shows both time and temperature.
Monitoring functionality
View and retrieve wash data for auditing purposes.
Why are JLA Smart Washers smart?
Discover why the JLA Smart washing machines are an innovative solution and trusted across various industries
Our Smart Guide demonstrates how to use the latest technology to optimise your coin-operated laundry operations, make efficiencies and ensure your laundry is always fresh after each load.
Play Video about JLA Smart washing machines
Benefits for business owners and their customers
Our coin-operated SMART washing machines with industrial-grade build quality, reliable operation and drums with multi-coin mechanisms all combine to maximise your wash capacity and boost your income.
All this is achieved while also ensuring that your customers get the best wash quality every time.
Choose a model that suits you
Many of our SMART washing machines are stackable.
Plus, detergent auto-dosing is available. With this option, you can open up extra revenue streams and reduce mess.
Also available with...

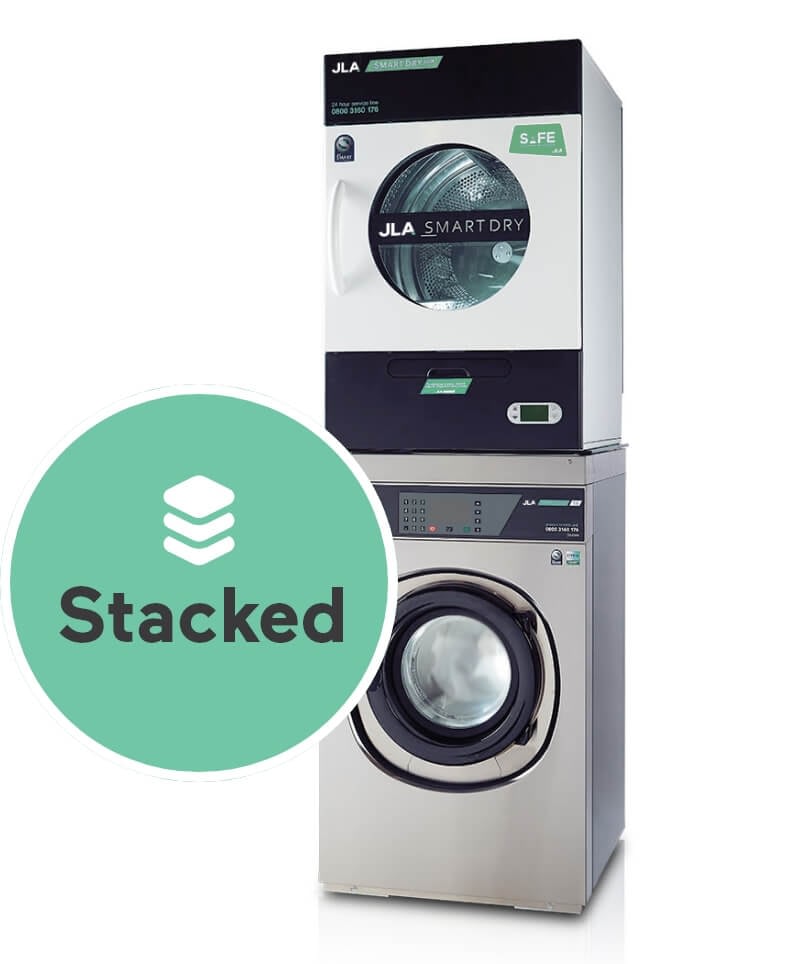

Stackable washer-dryer combinations
Our coin-operated SMART washing machines are stackable and can be used below our dryers.
This way, you can double up on efficiency. Plus, if you need extra drying capacity, then you can also put two dryers together in an upright combination.

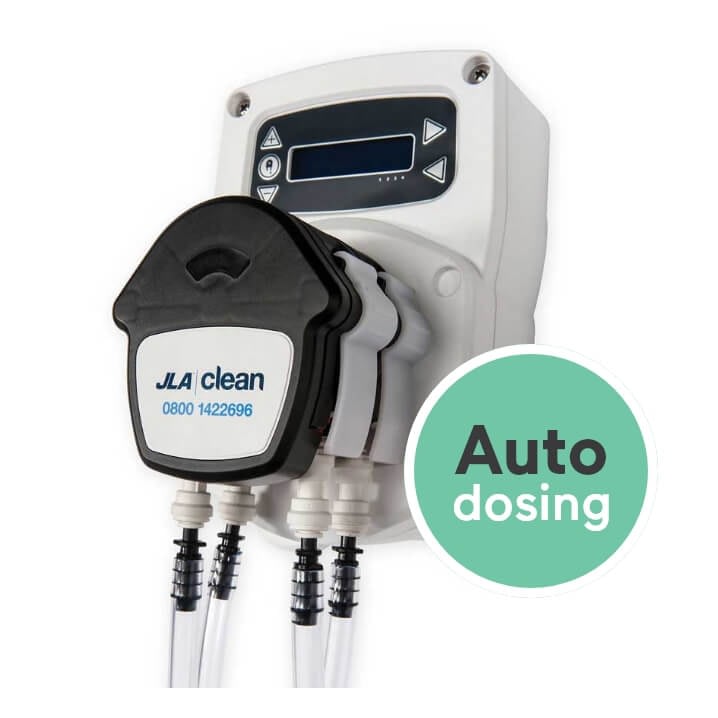

Auto-dosing
No more and no less than is needed for the best wash quality.
Our intelligent auto-dosing pumps allow you to be more economical with detergents, eliminating user error and guaranteeing the correct dose is always used. With no need to handle chemicals, it’s also safer for staff.
Specification
JLA 16
JLA 22
JLA 30
JLA 40
JLA 20 RM
JLA 30 RM
JLA 40 RM
JLA 16
| Capacity kg/lb | 7.5/16 |
| Height mm (including feet) | 1139 |
| Width mm | 710 |
| Depth mm | 790 |
| Weight kg/lb | 185/408 |
| Drum Volume litres | 75 |
| Spin Speed rpm | 1165 |
| G-Force | 400 |
| Door Opening Diameter mm | 330 |
| Electrics | |
| 4.6 kW 1ph | 1ph/230V / 32A (std) |
| 6 kW 3ph | 3ph+N/ 400V/ 16A ph |
| 9 kW 3ph | – |
| 12 kW 3ph | – |
| 18 kW 3ph | – |
| 21.9 kW 3ph | – |
| Steam Heated/Boiler Fed | 1ph/230V/ 16A |
| No of Water connections (hot/cold) | 1/1 |
| Water Connection Size BSP | 3/4” |
| Gravity Drain Connection Diameter inch/mm | 3/76 |
| (Optional) Steam Rating per cycle kg | 1.33 |
| (Optional) Steam Connection Size inch | 1/2 |
| Available in Coin-Op | Y |
JLA 22
| Capacity kg/lb | 10/22 |
| Height mm (including feet) | 1249 |
| Width mm | 795 |
| Depth mm | 795 |
| Weight kg/lb | 210/463 |
| Drum Volume litres | 105 |
| Spin Speed rpm | 1075 |
| G-Force | 400 |
| Door Opening Diameter mm | 410 |
| Electrics | |
| 4.6 kW 1ph | – |
| 6 kW 3ph | 1ph/230V / 32A |
| 9 kW 3ph | 3ph+N/400V/ 20A ph (std) |
| 12 kW 3ph | – |
| 18 kW 3ph | – |
| 21.9 kW 3ph | – |
| Steam Heated/Boiler Fed | 1ph/230V/ 16A |
| No of Water connections (hot/cold) | 1/1 |
| Water Connection Size BSP | 3/4” |
| Gravity Drain Connection Diameter inch/mm | 3/76 |
| (Optional) Steam Rating per cycle kg | 1.4 |
| (Optional) Steam Connection Size inch | 1/2 |
| Available in Coin-Op | Y |
JLA 30
| Capacity kg/lb | 13.5/30 |
| Height mm (including feet) | 1249 |
| Width mm | 795 |
| Depth mm | 945 |
| Weight kg/lb | 255/563 |
| Drum Volume litres | 135 |
| Spin Speed rpm | 1075 |
| G-Force | 400 |
| Door Opening Diameter mm | 410 |
| Electrics | |
| 4.6 kW 1ph | – |
| 6 kW 3ph | 1ph/230V / 32A |
| 9 kW 3ph | 3ph+N/400V/ 20A ph |
| 12 kW 3ph | 3ph+N ; 400V/32A ph (std) |
| 18 kW 3ph | – |
| 21.9 kW 3ph | – |
| Steam Heated/Boiler Fed | 1ph/230V/ 16A |
| No of Water connections (hot/cold) | 1/1 |
| Water Connection Size BSP | 3/4” |
| Gravity Drain Connection Diameter inch/mm | 3/76 |
| (Optional) Steam Rating per cycle kg | 2.1 |
| (Optional) Steam Connection Size inch | 1/2 |
| Available in Coin-Op | Y |
JLA 40
| Capacity kg/lb | 18/40 |
| Height mm (including feet) | 1434 |
| Width mm | 970 |
| Depth mm | 970 |
| Weight kg/lb | 380/838 |
| Drum Volume litres | 180 |
| Spin Speed rpm | 980 |
| G-Force | 400 |
| Door Opening Diameter mm | 460 |
| Electrics | |
| 4.6 kW 1ph | – |
| 6 kW 3ph | – |
| 9 kW 3ph | – |
| 12 kW 3ph | 3ph+N ; 400V/32A ph |
| 18 kW 3ph | 3ph+N ; 400V/40A ph (std) |
| 21.9 kW 3ph | – |
| Steam Heated/Boiler Fed | 1ph/230V/ 16A |
| No of Water connections (hot/cold) | 1/1 |
| Water Connection Size BSP | 3/4” |
| Gravity Drain Connection Diameter inch/mm | 3/76 |
| (Optional) Steam Rating per cycle kg | 5.48 |
| (Optional) Steam Connection Size inch | 1/2 |
| Available in Coin-Op | Y |
JLA 20 RM
| Capacity | kg/lb | 9/20 |
| Height | mm | 1092 |
| Width | mm | 660 |
| Depth | mm | 784 |
| Net weight | kg/lb | 152/335 |
| Drum volume | litres | 78.1 |
| Spin speed | rpm | 819 |
| G Force | 200 | |
| Door opening diameter | mm | 295 |
| Electrics | ||
| Steam heated/Boiler fed | 230V/50Hz/1ph – 10A | |
| No of water connections (hot/cold) | 2 (1/1) | |
| Water connection size | BSP | 3/4” |
| Gravity drain size | mm | 50 |
| Steam consumption per cycle | kg/lb | 5.3/11.7 |
| Steam connection size | BSP | 1/2” |
| Available in coin-op | Yes |

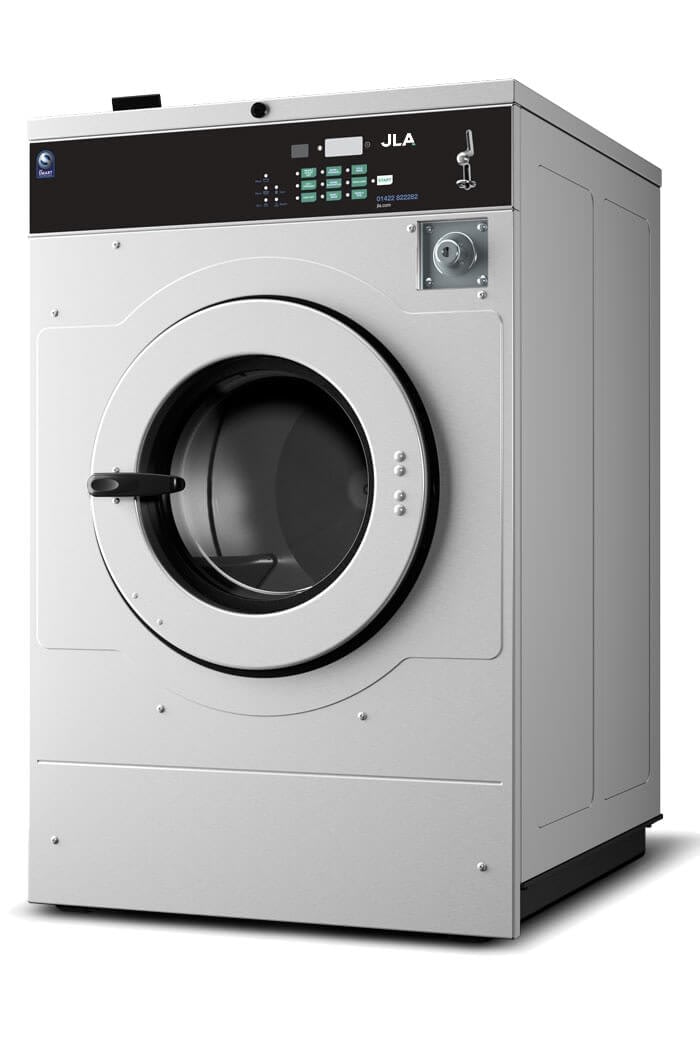

JLA 30 RM
| Capacity | kg/lb | 13.5/30 |
| Height | mm | 1143 |
| Width | mm | 737 |
| Depth | mm | 896 |
| Net weight | kg/lb | 209/460 |
| Drum volume | litres | 118 |
| Spin speed | rpm | 766 |
| G Force | 200 | |
| Door opening diameter | mm | 364 |
| Electrics | ||
| Steam heated/Boiler fed | 230V/50Hz/1ph – 10A | |
| No of water connections (hot/cold) | 2 (1/1) | |
| Water connection size | BSP | 3/4” |
| Gravity drain size | mm | 50 |
| Steam consumption per cycle | kg/lb | 6.4/14.1 |
| Steam connection size | BSP | 1/2” |
| Available in coin-op | Yes |
JLA 40 RM
| Capacity | kg/lb | 18/40 |
| Height | mm | 1199 |
| Width | mm | 778 |
| Depth | mm | 1073 |
| Net weight | kg/lb | 249/548 |
| Drum volume | litres | 180 |
| Spin speed | rpm | 733 |
| G Force | 200 | |
| Door opening diameter | mm | 413 |
| Electrics | ||
| Steam heated/Boiler fed | 230V/50Hz/1ph – 10A | |
| No of water connections (hot/cold) | 2 (1/1) | |
| Water connection size | BSP | 3/4” |
| Gravity drain size | mm | 76 |
| Steam consumption per cycle | kg/lb | 12.2/26.9 |
| Steam connection size | BSP | 1/2” |
| Available in coin-op | Yes |
FAQs
Which options are available in the range of coin-operated SMART washing machines?
Our range of coin-operated SMART washing machines includes seven different options, including a range of free standing and rigid mount units.
What size are the coin-operated SMART washing machines?
Our coin-operated SMART washing machines range in capacity from 7.5kg to 18kg. This means there’s sure to be an option that suits your business.
What is the drum volume of the coin-operated SMART washing machines?
Much like the size of the machines, the drum volume of our coin-operated SMART washing machines varies depending on the model chosen. Our smallest machine has a drum volume of 75 litres, while our largest machine has a drum volume of 180 litres.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to MyJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
Other products you may like...

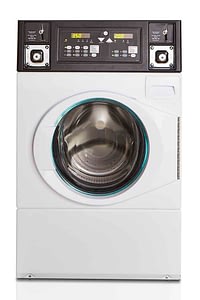

Coin-Operated JLA 98 Commercial Washing Machines (9.5kg)
