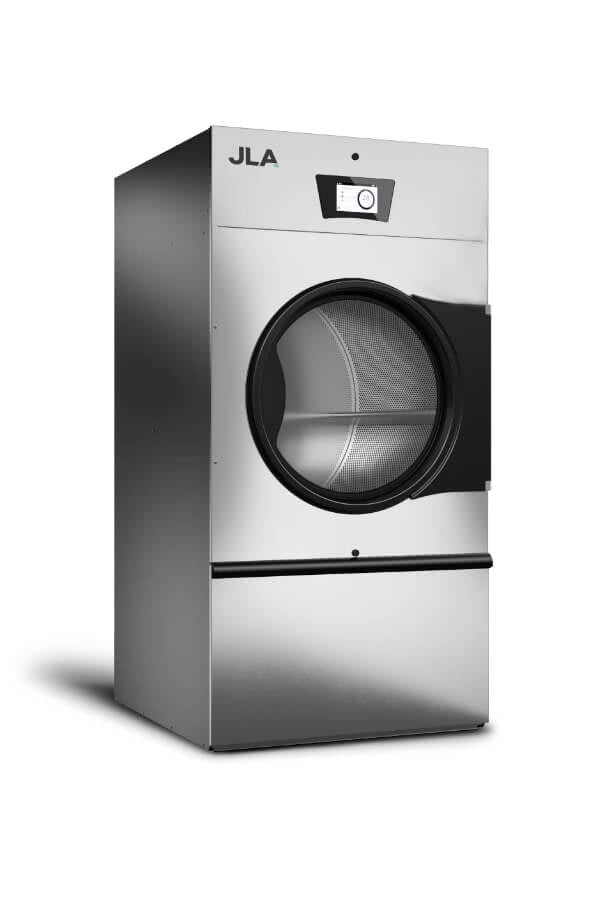

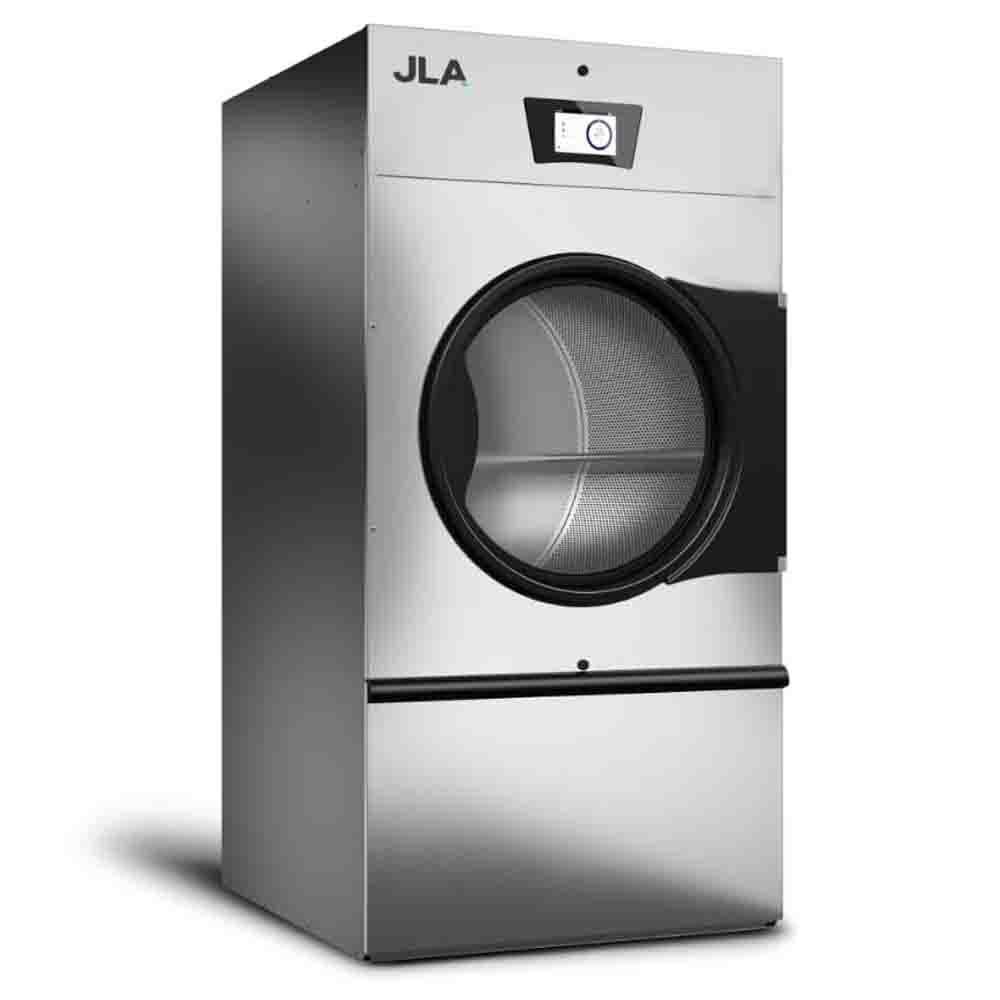

JLA Touch Tumble Dryers
Concentrated airflow and sealed cylinder rims help maintain a high throughput without using lots of energy. Plus, because they’re designed with fewer moving parts for less wear and tear, a large, easy-to-clean lint compartment and a heavy-duty door hinge, our dryers will perform cycle after cycle.
Specification
| CAPACITY 20:1 (kg) | 14 |
| DRUM | |
| Volume (l) | 270 |
| Diameter (mm) | 673 |
| Depth (mm) | 762 |
| Door opening diameter (mm) | 576 |
| Temperature min. (°C) | 38 |
| Temperature max (°C) | 88 |
| ELECTRICAL | |
| Gas and steam version | 240V/50Hz/1ph – 13A |
| Electric heat version | 415V/50Hz/3ph – 32A |
| GAS REQUIREMENTS | |
| Heat input | 21.4kW (73000 BTU) |
| Inlet size | 1/2 ” BSP |
| STEAM REQUIREMENTS | |
| Consumption | 39.5kg/hr |
| Connection – supply & return | 3/4 ” BSP |
| POWER MOTOR | |
| Drum | 0,20 |
| Fan | 0,40 |
| Exhaust flow rate (50 Hz) (L/S) | 240 |
| Diameter (mm) | 150 |
| POWER | |
| Electric heating (kW) | 21 |
| Gas heating (BTU/H) | 73 000 |
| Gas heating (KCAL) | 18 408 |
| Energy consumption (kWh) – Electric | 9,4 |
| Energy consumption (kWh) – Gas | 0,220 |
| Energy consumption (kWh) – Steam | N/A |
| STEAM HEATING | |
| @ 6,9 BAR | N/A |
| Steam inlet connection (inch) | N/A |
| Steam outlet connection (inch) | N/A |
| Gas connection (inch) | N/A |
| NOISE LEVEL | 59 |
| TRANSPORT DATA | |
| Net weight (kg) | 145 (G/S) – 150 (E) |
| Gross weight (kg) | 214 (G/S) – 220 (E) |
| Packing dimensions W x D x H (mm) | 880 x 1320 x 2210 |
| CAPACITY 20:1 (kg) | 26 |
| DRUM | |
| Volume (l) | 530 |
| Diameter (mm) | 940 |
| Depth (mm) | 762 |
| Door opening diameter (mm) | 683 |
| Temperature min. (°C) | 38 |
| Temperature max (°C) | 88 |
| ELECTRICAL | |
| Gas and steam version | 240V/50Hz/1ph – 16A |
| Electric heat version | 415V/50Hz/3ph – 45A |
| GAS REQUIREMENTS | |
| Heat input | 32.8kW (112000 BTU) |
| Inlet size | 1/2 ” BSP |
| STEAM REQUIREMENTS | |
| Consumption | N/A |
| Connection – supply & return | N/A |
| POWER MOTOR | |
| Drum | 0,40 |
| Fan | 0,40 |
| Exhaust flow rate (50 Hz) (L/S) | 330 |
| Diameter (mm) | 203 |
| POWER | |
| Electric heating (kW) | 30 |
| Gas heating (BTU/H) | 130 000 |
| Gas heating (KCAL) | 32 781 |
| Energy consumption (kWh) – Electric | 15,2 |
| Energy consumption (kWh) – Gas | 0,210 |
| Energy consumption (kWh) – Steam | – |
| STEAM HEATING | |
| @ 6,9 BAR | 113 600 BTU/h 33,29 kW |
| Steam inlet connection (inch) | 3/4 |
| Steam outlet connection (inch) | 3/4 |
| Gas connection (inch) | 1/2 |
| NOISE LEVEL | 60 |
| TRANSPORT DATA | |
| Net weight (kg) | 295 (G) – 315 (S) – 310 (E) |
| Gross weight (kg) | 380 (G) – 400 (S) – 395 (E) |
| Packing dimensions W x D x H (mm) | 1170 x 1350 x 2240 |
| CAPACITY 20:1 (kg) | 32 |
| DRUM | |
| Volume (l) | 634 |
| Diameter (mm) | 940 |
| Depth (mm) | 914 |
| Door opening diameter (mm) | 683 |
| Temperature min. (°C) | 38 |
| Temperature max (°C) | 88 |
| ELECTRICAL | |
| Gas and steam version | 240V/50Hz/1ph – 13A |
| Electric heat version | 415V/50Hz/3ph – 50A |
| GAS REQUIREMENTS | |
| Heat input | 48.4kW (165000 BTU) |
| Inlet size | 1/2 " BSP |
| STEAM REQUIREMENTS | |
| Consumption | 63.4kg/hr |
| Connection – supply & return | 3/4 " BSP |
| POWER MOTOR | |
| Drum | 0,40 |
| Fan | 0,40 |
| Exhaust flow rate (50 Hz) (L/S) | 380 (G) – 380 (E) |
| Diameter (mm) | 203 |
| POWER | |
| Electric heating (kW) | 36 |
| Gas heating (BTU/H) | 165 000 |
| Gas heating (KCAL) | 41 607 |
| Energy consumption (kWh) – Electric | 20,5 |
| Energy consumption (kWh) – Gas | 0,310 |
| Energy consumption (kWh) – Steam | 0,45 |
| STEAM HEATING | |
| @ 6,9 BAR | 133 900 BTU/h 39,24 kW |
| Steam inlet connection (inch) | 3/4 |
| Steam outlet connection (inch) | 3/4 |
| Gas connection (inch) | 1/2 |
| NOISE LEVEL | 60 |
| TRANSPORT DATA | |
| Net weight (kg) | 310 (G) – 325 (S) – 320 (E) |
| Gross weight (kg) | 395 (G) – 415 (S) – 410 (E) |
| Packing dimensions W x D x H (mm) | 1170 x 1500 x 2240 |
All specifications subject to change without notice.

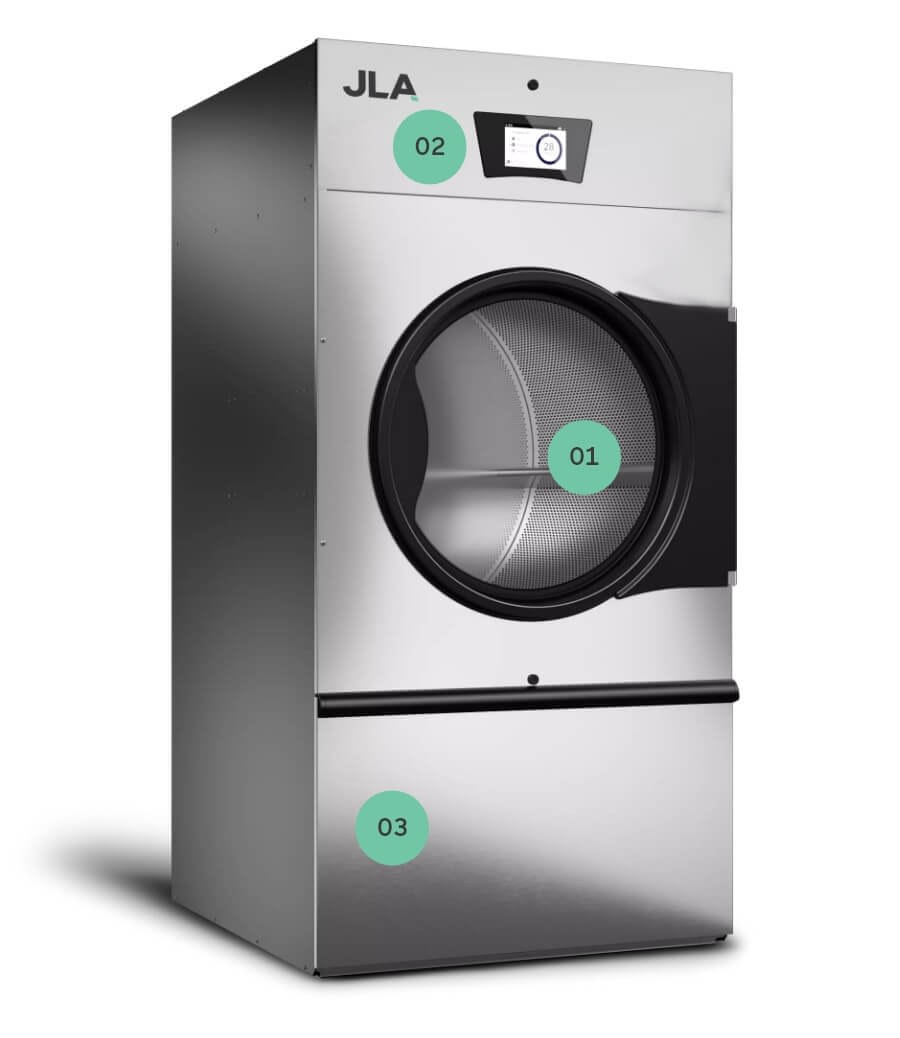

Reversing drum
Which prevents linens from tangling and ensures superior drying.
7” full colour touch screen
Which features a swipe function and built-in operating instructions for ease of use.
Built to last
These machines feature fewer moving parts. This means that there’s less wear and tear and machines last longer.
Features you'll love
Electric and gas heating options available
Automated maintenance service reminders
Optional SAFE
Saving energy with JLA Touch Dryers
Explore the features of this product and how you can save energy bills
This guide highlights the innovative key features on the JLA Touch Dryer range and how it can help you improve efficiencies in even the busiest of laundry rooms. Available in three options, this product range is easy-to-clean, a wider door opening and a reversing drum to prevent linens from tangling to perform cycle after cycle.
Save time and money
Our JLA Touch tumble dryers have been designed to help save you time and money.
While the touch screen makes operation easy for staff members, the large lint compartment is also incredibly easy to clean and the large door opening means it’s easy to load and unload bulky items.

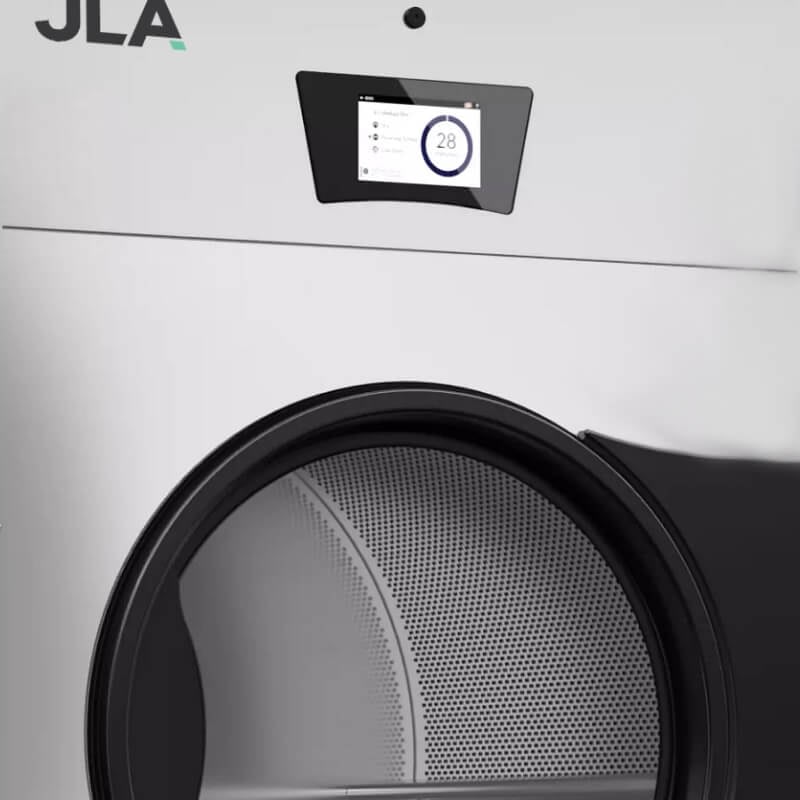

Touch screen control
Thanks to EVOLVIS control, you can enjoy use of a 7” full colour touch screen display with swipe functionality.
This user-friendly screen comes with built-in operating instructions and content control is available in 34 languages.
Also available with...

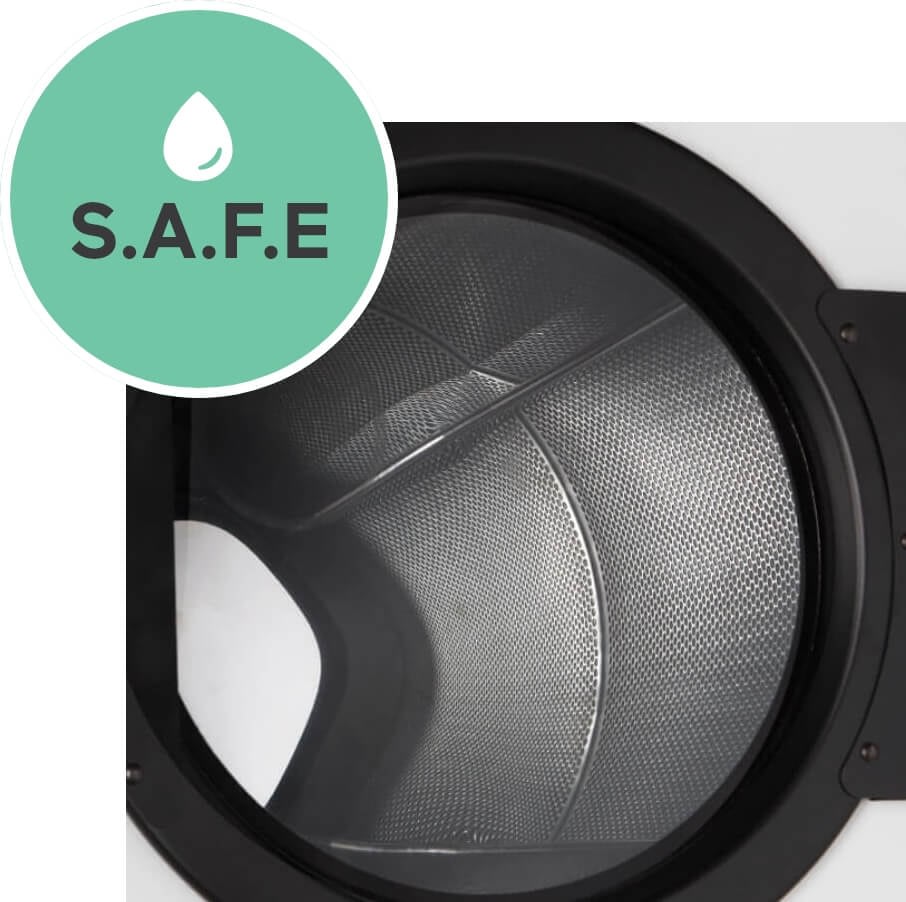

SAFE technology
All of our gas JLA Touch tumble dryers are available with SAFE (sensor activated fire extinguishing) technology.
FAQs
Which options are available in the range of JLA Touch tumble dryers?
Our range of JLA Touch tumble dryers includes three options: the JLA 30, the JLA 50 and the JLA 75.
How big are the JLA Touch tumble dryers?
Our JLA Touch tumble dryers come in three different sizes. While the JLA 30 has a capacity of 14kg and a drum capacity of 530 litres, the JLA has a capacity of 26kg and a drum volume of 530 litres. Meanwhile, the JLA 75, which is the largest option in the range, has a capacity of 32kg and a drum volume of 634 litres.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to MyJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
Other products you may like...
JLA SMART Tumble Dryers
With a number of innovations that are designed to cut costs and drying times, our range of SMART tumble dryers continues to set a new benchmark.
JLA D-Dryers
Our JLA D-dryers combine efficiency, economy and safety to offer a hassle-free drying solution.

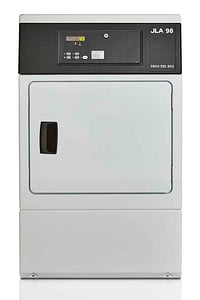

JLA 98 Tumble Dryer
