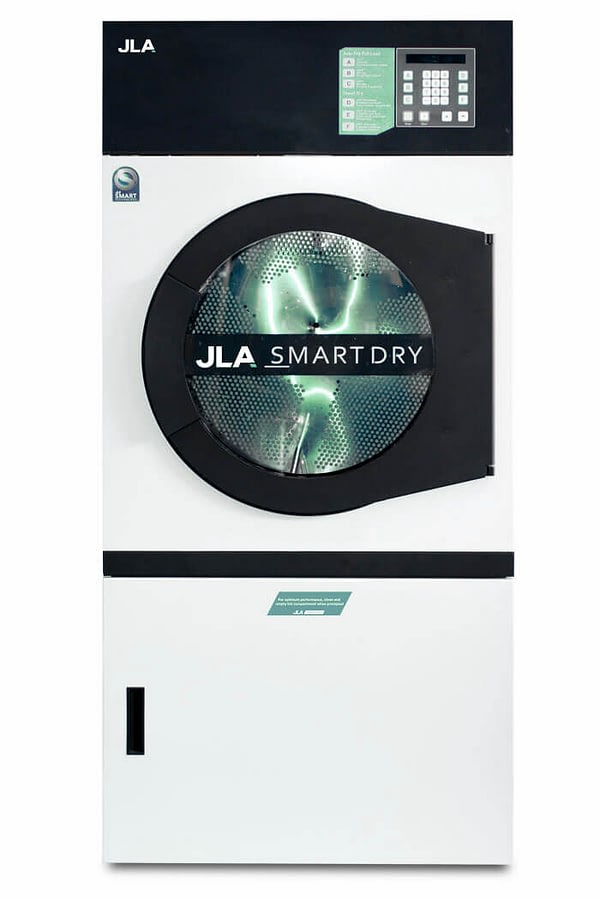

JLA SMART Tumble Dryers
In designing a new range of dryers to complement our SMART Wash range, we have continued to push through new boundaries while also enhancing proven features that have served tens of thousands of our customers well in the past.
Specification
| Capacity | kg/lb | 9/20 |
| Height | mm | 1062 |
| Width | mm | 686 |
| Depth | mm | 777 |
| Depth (inc door) | mm | 1463 |
| Net weight (gas/elec) | kg | 111.13 |
| Drum volume | m3/ltr | 0.21/210 |
| Door opening | mm ø | 492 |
| Heating | Â | Gas / Steam / Elec |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model | Volt/ph/amp | 400/3/16 |
| Electrics – steam model | Volt/ph/amp | n/a |
| Power – electric model | kw | 8.1 |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 11.7 (40,000) |
| Steam rating | kg/hr (lb/hr) | n/a |
| Airflow | m3/min (ft3/min) | 6.51 (230) |
| Exhaust | mm ø (in ø) | 100 (4) |
| Ventilation/make-up air | m2 (in2) | 0.026 (40) |
| Air connection – steam only | “BSP | – |
| Air connection pressure – steam only | psi | – |
| SAFE system (manual) | Â | Y |
| SAFE system (coin-op) (optional) | Â | Gas only |
| Capacity | kg/lb | 16/35 |
| Height | mm | 1725 |
| Width | mm | 810 |
| Depth | mm | 1140 |
| Depth (inc door) | mm | 1889 |
| Net weight (gas/elec) | kg | 250.4 |
| Drum volume | m3/ltr | 0.34/340 |
| Door opening | mm ø | 546 |
| Heating | Â | Gas / Elec |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model | Volt/ph/amp | 400/3/25 |
| Electrics – steam model | Volt/ph/amp | 230/1/13 |
| Power – electric model | kw | 13.6 |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 20.5 (70,000) |
| Steam rating | kg/hr (lb/hr) | 43.9 (96.6) |
| Airflow | m3/min (ft3/min) | 9.63 (340) |
| Exhaust | mm ø (in ø) | 152 (6) |
| Ventilation/make-up air | m2 (in2) | 0.045 (70) |
| Air connection – steam only | “BSP | 1/8 |
| Air connection pressure – steam only | psi | 80 |
| SAFE system (manual) | Â | Y |
| SAFE system (coin-op) (optional) | Â | Gas / Steam only |
| Capacity | kg/lb | 23/50 |
| Height | mm | 1871 |
| Width | mm | 876 |
| Depth | mm | 1300 |
| Depth (inc door) | mm | 2118 |
| Net weight (gas/elec) | kg | 297.1 |
| Drum volume | m3/ltr | 0.52/518 |
| Door opening | mm ø | 686 |
| Heating | Â | Gas / Steam / Elec |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model | Volt/ph/amp | 400/3/40 |
| Electrics – steam model | Volt/ph/amp | 230/1/13 |
| Power – electric model | kw | 22 |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 35.2 (120,000) |
| Steam rating | kg/hr (lb/hr) | 62.7 (138) |
| Airflow | m3/min (ft3/min) | 23.36 (825) |
| Exhaust | mm ø (in ø) | 203 (8) |
| Ventilation/make-up air | m2 (in2) | 0.077 (120) |
| Air connection – steam only | “BSP | 1/8 |
| Air connection pressure – steam only | psi | 80 |
| SAFE system (manual) | Â | Y |
| SAFE system (coin-op) (optional) | Â | 0.121 (188) Total |
| Capacity | kg/lb | 36/80Â |
| Height | mm | 1978 |
| Width   | mm | 991  |
| Depth | mm | 1377 |
| Depth (inc door)Â Â | mm | 2308Â |
| Net weight (gas/elec) | kg | 317.5 |
| Drum volume | m3/ltr | 0.62/624 |
| Door opening | mm ø | 797 |
| Heating | Â | Gas / Steam / Elec |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model  | Volt/ph/amp     | 400/3/40 |
| Electrics – steam model | Volt/ph/amp | 230/1/13 |
| Power – electric model | kw | 22 |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 39.6 (135,000) |
| Steam rating | kg/hr (lb/hr) | 110 (242) |
| Airflow  | m3/min (ft3/min) | 24.92 (880) |
| Exhaust | mm ø (in ø) | 203 (8) |
| Ventilation/make-up air   | m2 (in2) | 0.087 (135) |
| Air connection – steam only | “BSP | 1/8 |
| Air connection pressure – steam only | psi | 80 |
| SAFE system (manual) | Â | Y |
| SAFE system (coin-op) (optional) | Â | 0.121 (188) Total |
| Capacity | kg/lb | (2x) 14/30 |
| Height | mm | 1988 |
| Width   | mm | 756 |
| Depth | mm | 1114 |
| Depth (inc door)Â Â | mm | 1781 |
| Net weight (gas/elec) | kg | 359.7 |
| Drum volume | m3/ltr | (2x) 0.29/286 |
| Door opening | mm ø | 546 |
| Heating | Â | Gas / Elec |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model  | Volt/ph/amp     | (2x) 400/3/25 |
| Electrics – steam model | Volt/ph/amp | n/a |
| Power – electric model | kw | 2 x 15kw |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 19.92 (68,000) per pocket |
| Steam rating | kg/hr (lb/hr) | n/a |
| Airflow  | m3/min (ft3/min) | 9.43 (333) per pocket |
| Exhaust | mm ø (in ø) | 2×152 (6) |
| Ventilation/make-up air   | m2 (in2) | 0.093 (144) Total |
| Air connection – steam only | “BSP | 1/8 |
| Air connection pressure – steam only | psi | 80 |
| SAFE system (manual) | Â | Y Gas only |
| SAFE system (coin-op) (optional) | Â | Gas only |
| Capacity | kg/lb | (2x) 20/45 |
| Height | mm | 2058 |
| Width   | mm | 870 |
| Depth | mm | 1353 |
| Depth (inc door)Â Â | mm | 2156 |
| Net weight (gas/elec) |
kg | 392 |
| Drum volume | m3/ltr | (2x) 0.41/413 |
| Door opening | mm ø | 686 |
| Heating | Gas | |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model  | Volt/ph/amp     | n/a |
| Electrics – steam model | Volt/ph/amp | n/a |
| Power – electric model | kw | n/a |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 27.5 (94,000) per pocket |
| Steam rating | kg/hr (lb/hr) | n/a |
| Airflow  | m3/min (ft3/min) | 14.87 (525) per pocket |
| Exhaust | mm ø (in ø) | 2×203 (8) |
| Ventilation/make-up air   | m2 (in2) | 0.121 (188) Total |
| Air connection – steam only | “BSP | n/a |
| Air connection pressure – steam only | psi | n/a |
| SAFE system (manual) | Y Gas only |
|
| SAFE system (coin-op) (optional) | Gas only |
All specifications subject to change without notice.
Vari-spin
Eco-flow
Two-phase heating
Our JLA SMART commercial tumble dryers are built in such a way that ambient air is drawn over the machine’s stove and ‘prewarmed’ before going on to be heated further in the flame chamber itself.

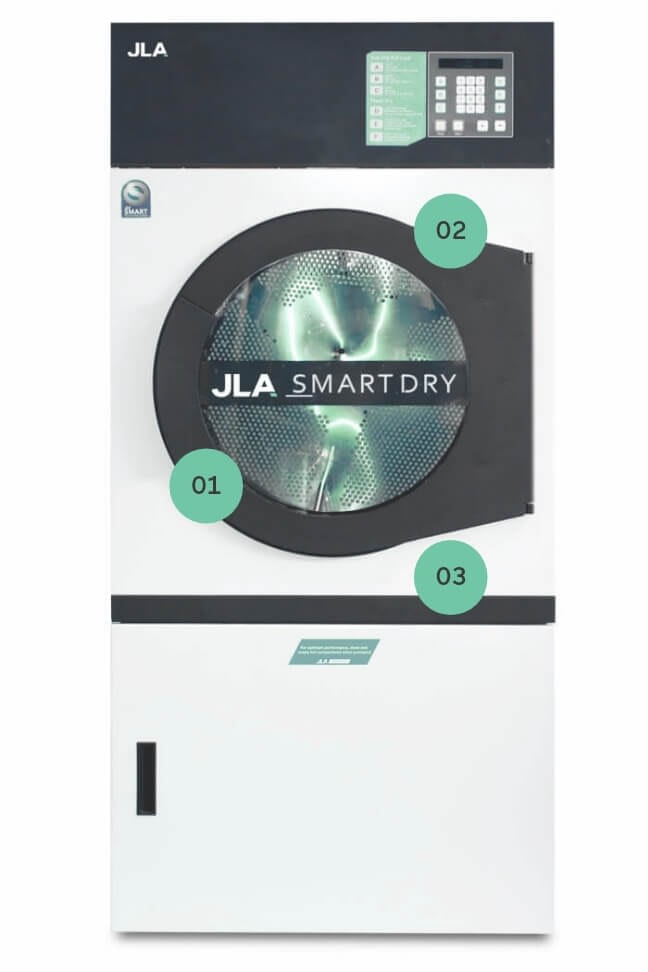

Features you'll love
Drum support rollers
Reversing cylinder
Self-cleaning lint filter
Bigger machines. Bigger ideas.
Our JLA Touch tumble dryers have been designed to help save you time and money.
To earn its status as a SMART dry machine, a JLA SMART tumble dryer must therefore meet our exacting standards in the areas that matter most to you: performance, efficiency and reliability.
Innovation through insight
We’ve developed core features in line with the things our customers have told us they need most.
From the way we direct air through our dryers to the way we’ve constructed our doors, cabinets and drums, you can rely on our JLA SMART dryers to deliver exactly what you need.
Also available with...

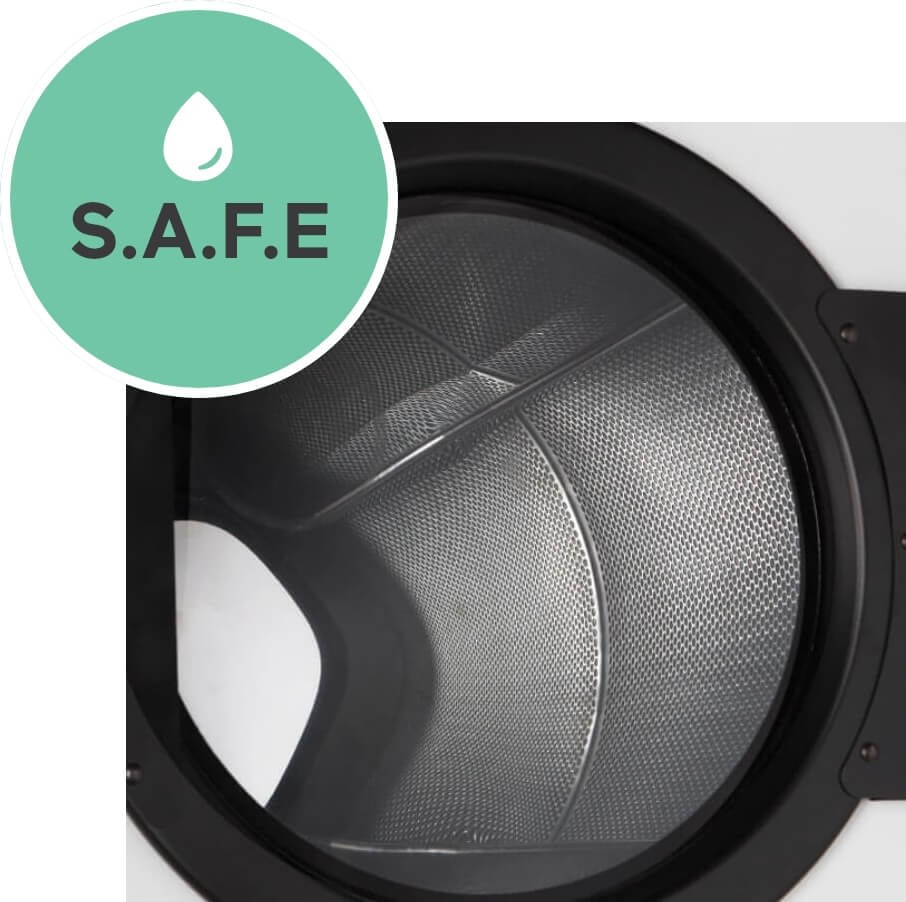

SAFE system
The majority of our SMART tumble dryers are available with our patented SAFE system, which constantly monitors the dryer drum to give you non-stop protection against the outbreak of fire.
Two SMART sensors detect any significant change in temperature and activate a sophisticated water vapour mechanism that soaks laundry to extinguish flames in seconds. No flooding ever takes place, so the risk of staff injury or damage to your property is eliminated – as are the associated risks of large scale evacuation.

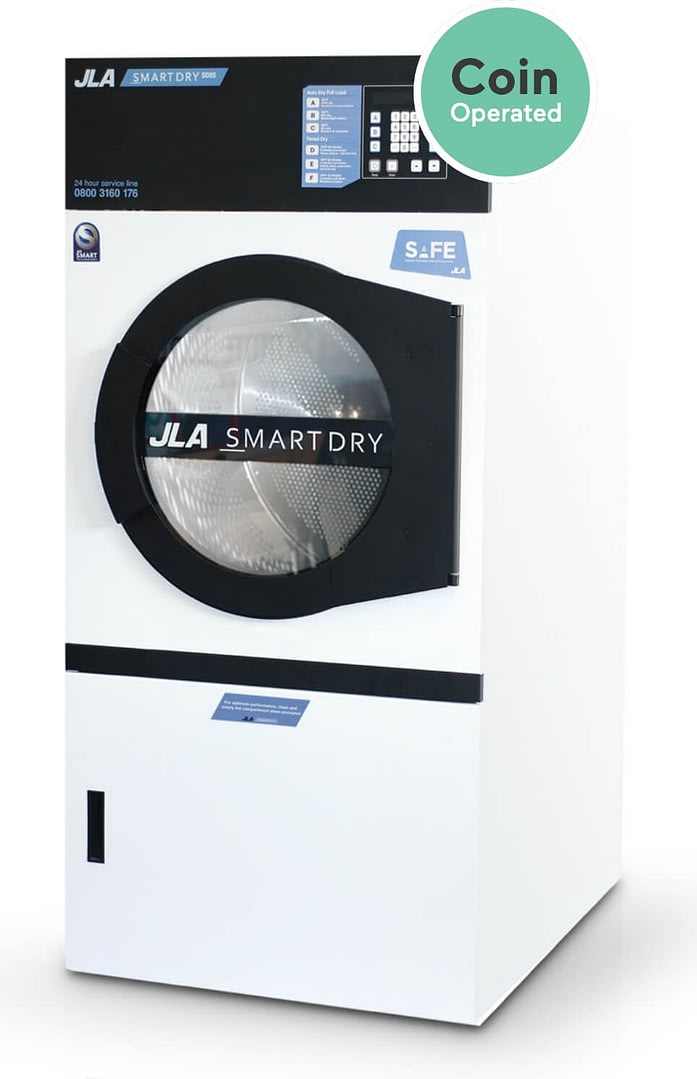

Coin-op systems
Most of our SMART tumble dryers are also available with our robust coin-op mechanism.
Extra-large integrated coin boxes reduce the need for frequent emptying and a full auditing of cycle counts and monies received plus a time of day pricing modifier ensure that revenue is maximised.

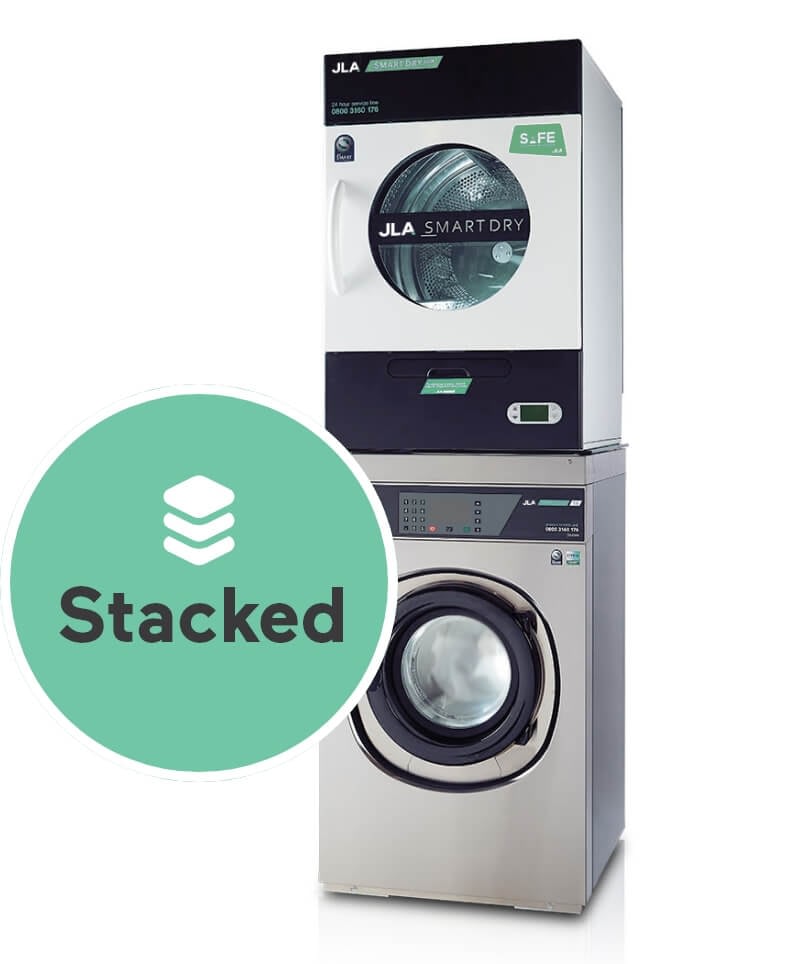

Stackable washer-dryer combinations
Our stackable SMART tumble dryers can be used above our SMART washing machines.

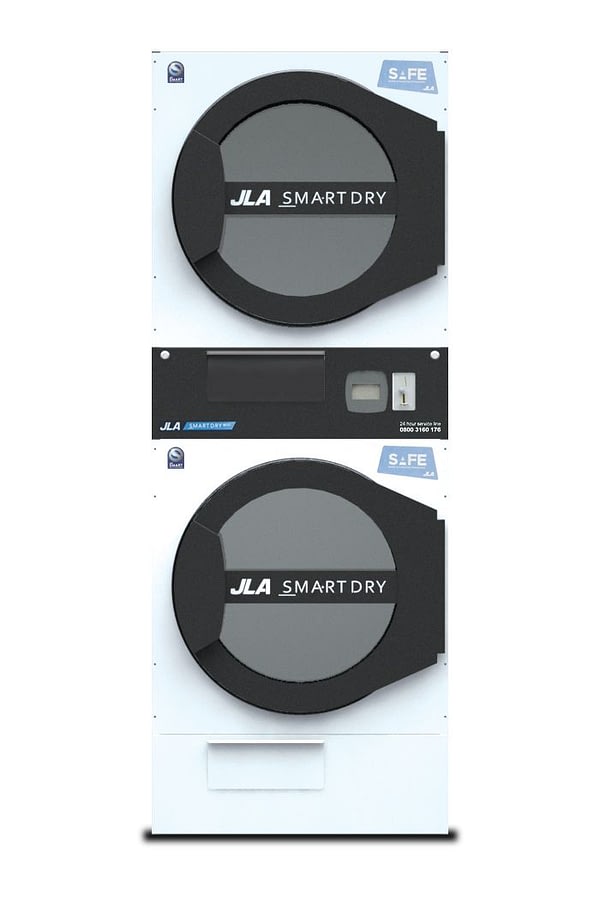

If you need extra drying capacity, then you can also put two dryers together in an upright combination – saving time and space in the process.
FAQs
Which machines are available in the range of SMART tumble dryers?
The range of SMART tumble dryers includes six excellent options. While the SD20 is the smallest in the range with a capacity of 9kg and a drum volume of 120 litres, the largest is the SD80, which has a capacity of 36kg and a drum volume of 624 litres.
How are the SMART tumble dryers heated?
Are the SMART tumble dryers available with Total Care?
Yes, Total Care is available on all our SMART dryers. Please contact our laundry experts to learn more.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to MyJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
