JLA D Heavy Duty Industrial Tumble Dryers
With large and extra-large capacities available, you’ll find that bulky items such as duvets and sheets are easy to handle.
With our exclusive SAFE system, large door opening and auto-dry programmes, these dryers are packed with class-leading features that can improve efficiency and optimise results.
Maximum efficiency
Auto-dry cycles prevent energy wastage and keep bills low.
One-touch operation
Thanks to six pre-programmed cycles.
Large lint filter
Teflon-coated drum
For durability and longer life.
Features you'll love
Unique roller drive system
Reversing drum
Insulated cabinets
What Makes JLA's Industrial Dryers "S.A.F.E"?
Enhancing Industrial Laundry Fire Safety
JLA’s industrial laundry system has unique fire safety features, including S.A.F.E technology, which stands for Sensor Activated Fire Extinguishing.
This innovative system enhances industrial laundry fire safety and can be found in their industrial tumble dryers. Learn more about it in the video.
Choose between steam and gas
The steam damper system is standard and allows the steam coil to stay constantly charged, eliminating repeated expansion and contraction
Due to this, the performance of our JLA D heavy duty tumble dryers surpasses that of conventional dryers with steam valves that are slow to heat and cool down, as well as being less efficient and having a reduced life.
Our gas dryers utilise the power of hot surface ignition. This leads to fast ignition, maximum efficiency and reduced running costs.
Efficiency, convenience and impressive results
Pre-set programmes eliminate user error, while a permanent press cycle and variable temperature settings combine to guarantee optimum drying temperatures for all fabrics.
FAQs
Which options are available in the range of JLA D heavy duty industrial tumble dryers?

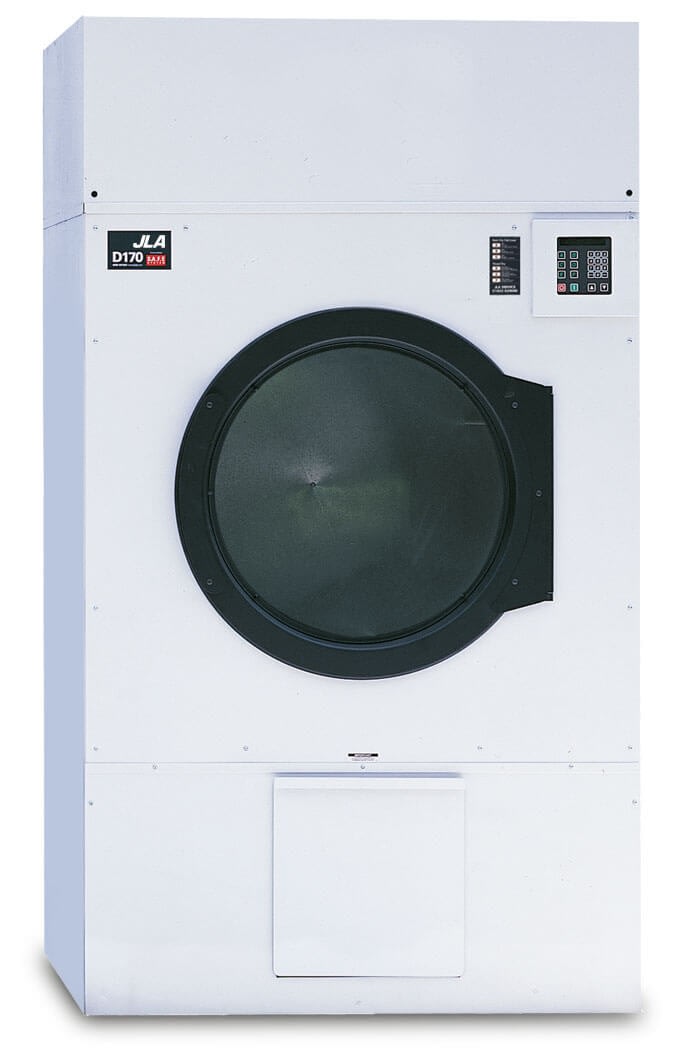

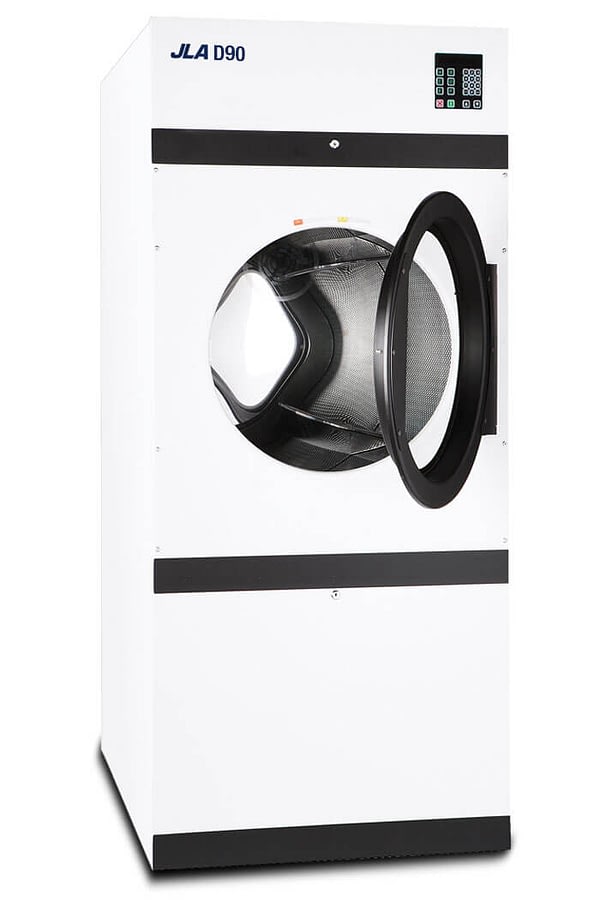

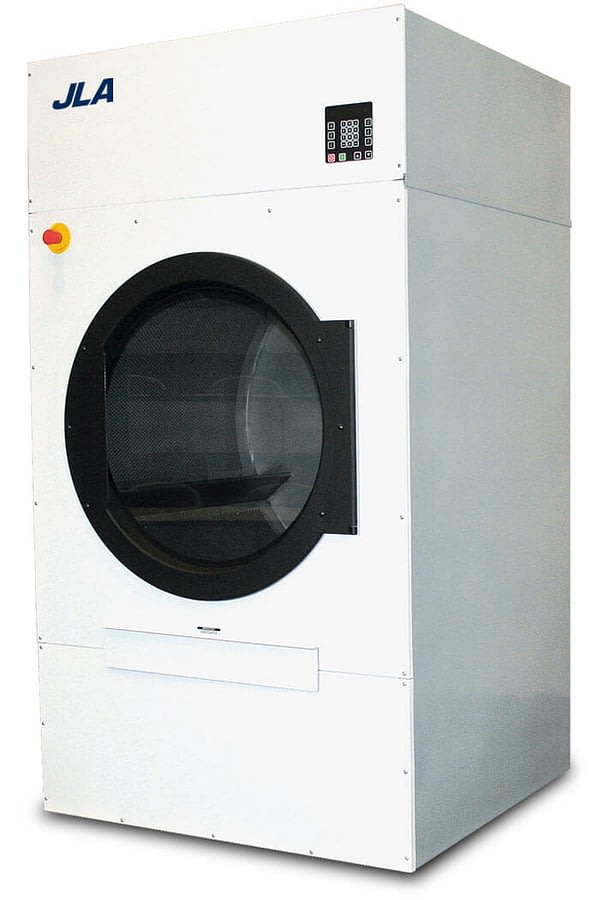

There are three options available in the range of JLA D heavy duty tumble dryers. These are the JLA D90, the JLA D120 and the JLA D170.
How big are the JLA D heavy duty tumble dryers?
Our heavy duty tumble dryers are built to withstand even the toughest laundry environments. The JLA D90 is the smallest model in the range, but it still provides a capacity of 40kg. Meanwhile, the JLA D120 offers a drum capacity of 55kg and the JLA D170 provides a drum capacity of 77kg.
Specification
| Heating | Gas |
| Capacity (Kg/lb) | 40/90 |
| Height steam (mm) | n/a |
| Â Height gas (mm) | 2092 |
| Width (mm) | 1172 |
| Depth (inc door) (mm) | 1832 |
| Net Weight gas (Kg) | 494 |
| Net Weight steam (Kg) | n/a |
| Drum Volume (m3) | 0.67 |
| Door Opening (mm Ø) | 797 |
| Control (Microprocessor) | Phase 7 |
| Electrics (Volt/ph/Amp) | 415/3/15 |
| No. of Water Connections (cold) | 1 |
| Gas Rating kW (Btu/hr) | 102.6(350,000) |
| Steam Rating Kg (lb/hr) | n/a |
| Compressed Air Rating m3 (ft3/hr) | 0.07 (2.5) |
| Airflow m3 (ft3/min) | 64.2 (2268) |
| Exhaust (mm Ø) | Gas – 400 |
| Heating | Gas/Steam |
| Capacity (Kg/lb) | 55/120 |
| Height steam (mm) | 2115 (operating) |
| Â Height gas (mm) | 2223 |
| Width (mm) | 1235 |
| Depth (inc door) (mm) | 2165 |
| Net Weight gas (Kg) | 653 |
| Net Weight steam (Kg) | 784 |
| Drum Volume (m3) | 1.08 |
| Door Opening (mm Ø) | 797 |
| Control (Microprocessor) | Phase 7 |
| Electrics (Volt/ph/Amp) | 415/3/20 |
| No. of Water Connections (cold) | 1 |
| Gas Rating kW (Btu/hr) | 121.6 (375,000) |
| Steam Rating Kg (lb/hr) | 204 (450) |
| Compressed Air Rating m3 (ft3/hr) | 0.09 (3.25) |
| Airflow m3 (ft3/min) | 76.6 (2333) |
| Exhaust (mm Ø) | Gas – 400 Steam – 450 |
| Heating | Gas/Steam |
| Capacity (Kg/lb) | 77/170 |
| Height steam (mm) | 2591 (operating) |
| Â Height gas (mm) | 2540 |
| Width (mm) | 1420 |
| Depth (inc door) (mm) | 2235 |
| Net Weight gas (Kg) | 953 |
| Net Weight steam (Kg) | 1025 |
| Drum Volume (m3) | 1.45 |
| Door Opening (mm Ø) | 797 |
| Control (Microprocessor) | Phase 7 |
| Electrics (Volt/ph/Amp) | 415/3/32 |
| No. of Water Connections (cold) | 1 |
| Gas Rating kW (Btu/hr) | 161.2 (550,000) |
| Steam Rating Kg (lb/hr) | 329 (725) |
| Compressed Air Rating m3 (ft3/hr) | 0.09 (3.25) |
| Airflow m3 (ft3/min) | 104 (3700) Gas 124 (4400) steam |
| Exhaust (mm Ø) | Gas – 450, Steam – 500 |
All specifications subject to change without notice.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed nationwide 8-working-hour engineer response – or £100 back
- 24/7/365 support from friendly advisors
- Access to MyJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
Other products you may like...
JLA D Industrial Tumble Dryers
Our JLA D industrial tumble dryers have been specially designed and constructed for maximum industrial throughput.

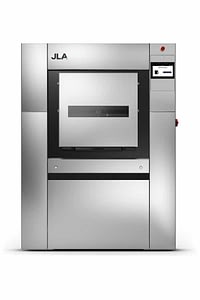

JLA Medium Medical Industrial Washing Machines (70kg - 90kg)
JLA medium medical washing machines are the ideal solution for laundry rooms where hygiene is of the utmost importance.

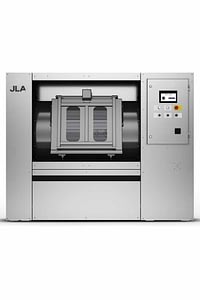

JLA Large Medical Industrial Washing Machines (18kg - 180kg)
