JLA Commercial D-Dryers
Pre-set programmes eliminate user error, while auto-dry cycles prevent energy wastage and cut down ironing and finishing times.
Maximum efficiency
Auto-dry cycles prevent energy wastage and cut down ironing and finishing times.
Microprocessor control
Plus one-touch operation and six pre-programmed cycles.
Clean lint filter prompt
Ensures maximum efficiency and safety.
Self-diagnostic error codes
Mean that you can easily identify faults.
Features you'll love
Hot surface ignition
Large heavy-duty door
Large lint filter drawer
Efficiency
Each of our JLA D-dryers allows for easy operation, and the six pre-programmed cycles mean that users can operate the machine with the touch of a button.
On top of this, auto-dry cycles prevent energy wastage and cut down ironing and finishing times while hot surface ignition reduces running costs.
Choose a model that suits you
Our JLA D-dryers come in a range of models and sizes, so you’ll find it simple to find an option that fits perfectly in your laundry room.
Four different models are available, and each has a different capacity. No matter how much laundry you do and how many cycles you need to run daily, we can offer an option that perfectly suits your needs.
FAQs
Which machines are part of the range of JLA D-dryers?

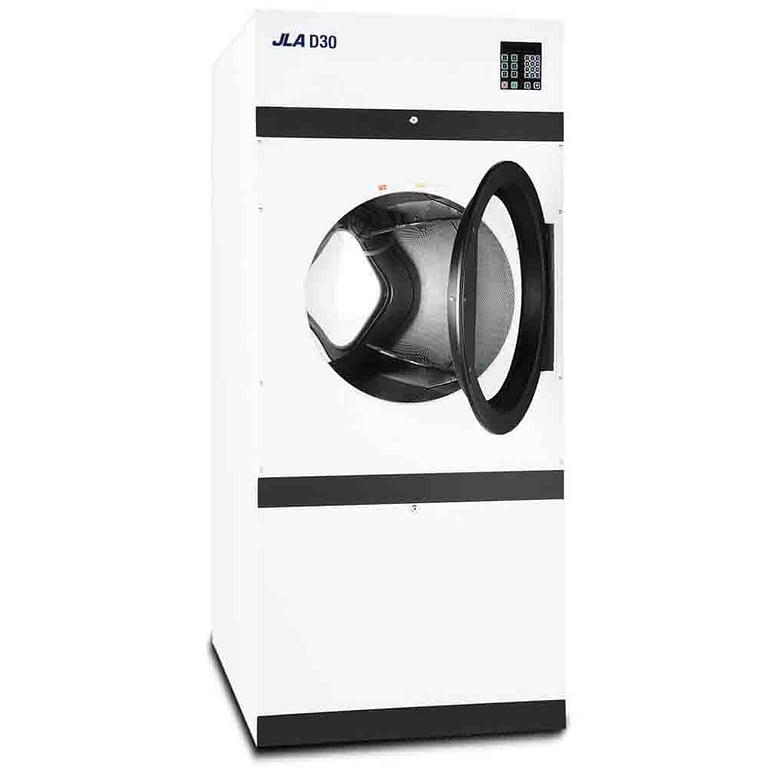

This range of D-Dryers includes four excellent options, the JLA D30, the JLA D40, the JLA D50 and the JLA D75.
How big are the JLA D-dryers?
Each of the four JLA D-dryers are a different size. For example, while the JLA D30 has a capacity of 14kg and a drum volume of 262 litres, the JLA D50 has a capacity of 34kg and a drum volume of 634 litres. Unsure which is right for you? Allow our experts to help.
Are JLA D-dryers easy to operate?
Yes, JLA D-dryers are incredibly easy to operate. Pre-set programmes eliminate user error and self-diagnostic error codes make it easy to find faults. Plus, the large door opening makes loading and unloading bulky items simple.
Specification
| Capacity (kg/lb) | 14/30 |
| Height Gas/Steam (mm) | 1835 |
| Height Electric (mm) | 1910 |
| Width (mm) | 870 |
| Depth inc. door (mm) | 765 |
| Net Weight Gas/Electric (kg) | 185 |
| Net Weight Steam (kg) | 197 |
| Drum Volume (m3/ltr) | 0.26/262 |

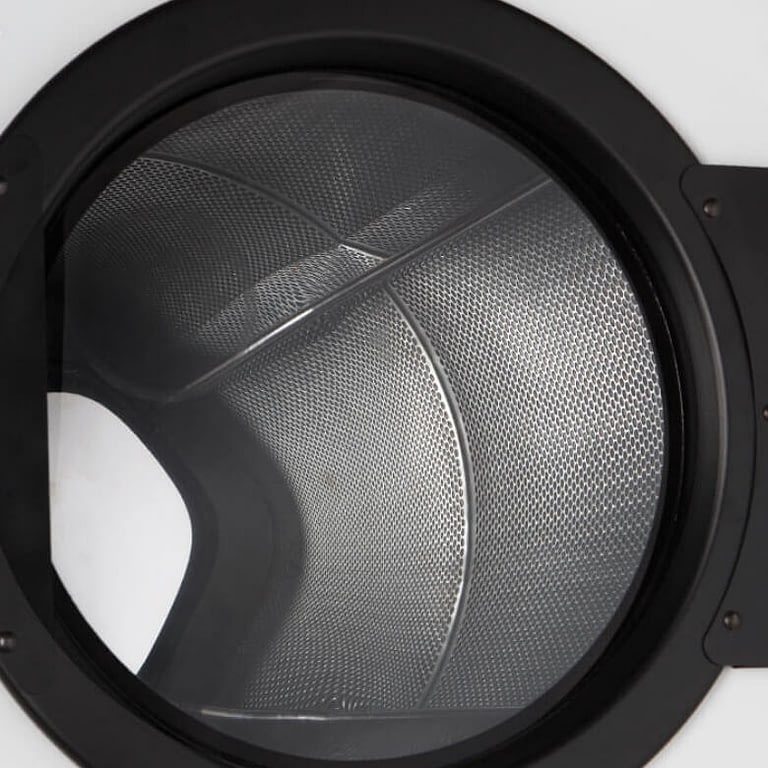

| Door Opening (mm Ø) | 546 |
| Control (Microprocessor) | Phase 7 |
| Heating (Gas/Steam/Elec) | |
| Electrics – Gas Model (Volt/ph/Amp) | 230/1/13 |
| Electrics – Elec Model (Volt/ph/Amp) | 400/3/32 |
| Electrics – Steam Model (Volt/ph/Amp) | 230/1/13 |
| Power (Electric) (kW) | 18 |
| Gas Rating kW (Btu/hr) | 23 (78,000) |
| Connection Size (“BSP) | 1/2 |
| Steam Rating Kg/hr (lb/hr) | 45 (100) |
| Connection Size (“BSP Supply/Ret) | 1/1 |
| Airflow m3 (ft3/min) | 10.93 (386) |
| Exhaust (mm Ø) | 203 |
| Ventilation/Make-Up Air (m2/in2) | 0.05/78 |
| Air Connection (“BSP) | 1/8 |
| Air Connection Pressure (only steam) (psi) | 80 |
| Capacity (kg/lb) | 18/40 |
| Height Gas/Steam (mm) | 1835 |
| Height Electric (mm) | 1910 |
| Width (mm) | 870 |
| Depth inc. door (mm) | 970 |
| Net Weight Gas/Electric (kg) | 242 |
| Net Weight Steam (kg) | 296 |
| Drum Volume (m3/ltr) | 0.35/354 |
| Door Opening (mm Ø) | 546 |
| Control (Microprocessor) | Phase 7 |
| Heating (Gas/Steam/Elec) | |
| Electrics – Gas Model (Volt/ph/Amp) | 230/1/13 |
| Electrics – Elec Model (Volt/ph/Amp) | 400/3/40 |
| Electrics – Steam Model (Volt/ph/Amp) | 230/1/13 |
| Power (Electric) (kW) | 22 |
| Gas Rating kW (Btu/hr) | 29.3 (100,000) |
| Connection Size (“BSP) | 1/2 |
| Steam Rating Kg/hr (lb/hr) | 47.2 (104) |
| Connection Size (“BSP Supply/Ret) | 1/1 |
| Airflow m3 (ft3/min) | 17.83 (630) |
| Exhaust (mm Ø) | 203 |
| Ventilation/Make-Up Air (m2/in2) | 0.065/100 |
| Air Connection (“BSP) | 1/8 |
| Air Connection Pressure (only steam) (psi) | 80 |
| Capacity (kg/lb) | 23/50 |
| Height Gas/Steam (mm) | 1835 |
| Height Electric (mm) | 1910 |
| Width (mm) | 870 |
| Depth inc. door (mm) | 1270 |
| Net Weight Gas/Electric (kg) | 295 |
| Net Weight Steam (kg) | 310 |
| Drum Volume (m3/ltr) | 0.52/518 |
| Door Opening (mm Ø) | 546 |
| Control (Microprocessor) | Phase 7 |
| Heating (Gas/Steam/Elec) | |
| Electrics – Gas Model (Volt/ph/Amp) | 230/1/13 |
| Electrics – Elec Model (Volt/ph/Amp) | 400/3/50 |
| Electrics – Steam Model (Volt/ph/Amp) | 230/1/13 |
| Power (Electric) (kW) | 28 |
| Gas Rating kW (Btu/hr) | 44 (150,000) |
| Connection Size (“BSP) | 1/1 |
| Steam Rating Kg/hr (lb/hr) | 65 (142) |
| Connection Size (“BSP Supply/Ret) | 1/1 |
| Airflow m3 (ft3/min) | 17.83 (630) |
| Exhaust (mm Ø) | 203 |
| Ventilation/Make-Up Air (m2/in2) | 0.096/150 |
| Air Connection (“BSP) | 1/8 |
| Air Connection Pressure (only steam) (psi) | 80 |
| Capacity (kg/lb) | 34/75 |
| Height Gas/Steam (mm) | 1908 |
| Height Electric (mm) | 1997 |
| Width (mm) | 972 |
| Depth inc. door (mm) | 1231 |
| Net Weight Gas/Electric (kg) | 327 |
| Net Weight Steam (kg) | 341 |
| Drum Volume (m3/ltr) | 0.63/634 |
| Door Opening (mm Ø) | 546 |
| Control (Microprocessor) | Phase 7 |
| Heating (Gas/Steam/Elec) | |
| Electrics – Gas Model (Volt/ph/Amp) | 230/1/13 |
| Electrics – Elec Model (Volt/ph/Amp) | 400/3/50 |
| Electrics – Steam Model (Volt/ph/Amp) | 230/1/13 |
| Power (Electric) (kW) | 30 |
| Gas Rating kW (Btu/hr) | 51.3 (175,000) |
| Connection Size (“BSP) | 3/4 |
| Steam Rating Kg/hr (lb/hr) | 93 (205) |
| Connection Size (“BSP Supply/Ret) | 1/1 |
| Airflow m3 (ft3/min) | 23.8 (840) |
| Exhaust (mm Ø) | 203 |
| Ventilation/Make-Up Air (m2/in2) | 0.11/175 |
| Air Connection (“BSP) | 1/8 |
| Air Connection Pressure (only steam) (psi) | 100 |
All specifications subject to change without notice.
